A recent job demonstrated how to renew a locked Land Rover ID49 smart key using the Xhorse VVDI Key Tool Max Pro. By following the correct procedure and using the proper connection method, the key was successfully unlocked and restored for reuse.
Menu Path:
Special Function → Remote Renew → Land Rover → 5EU40247 (434MHz)
Procedure:

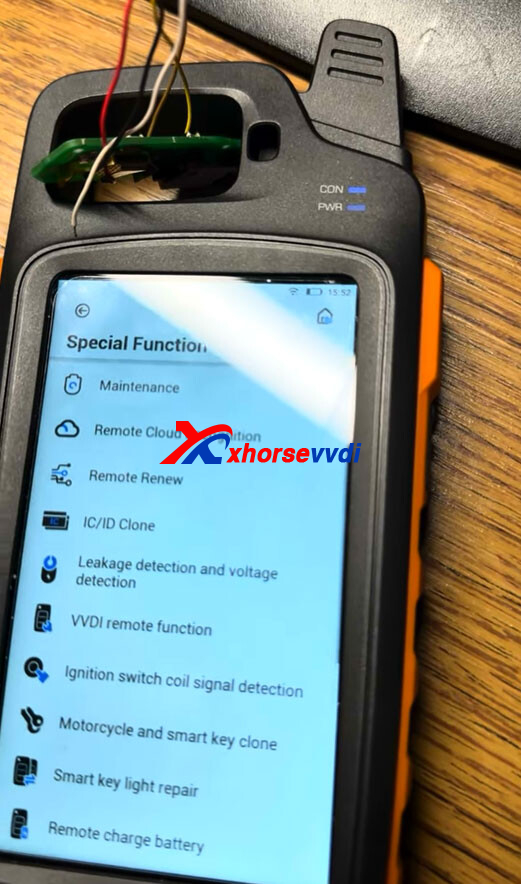

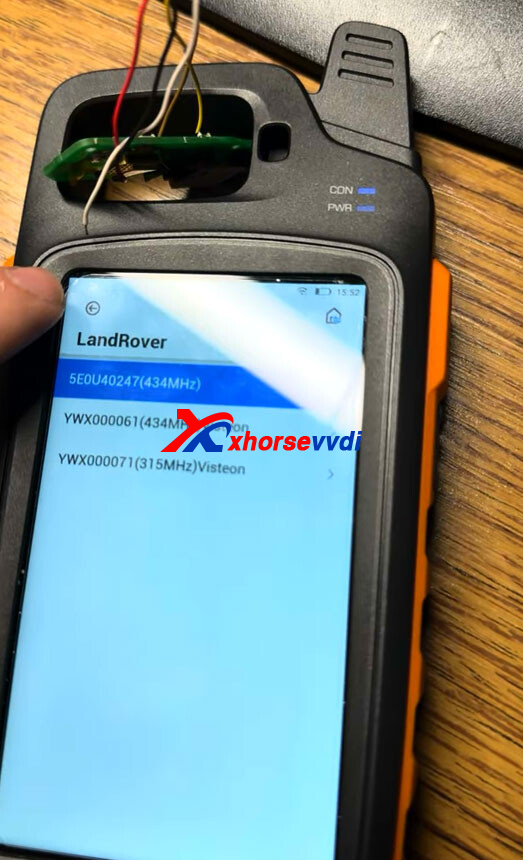

1.Access Remote Renew Function
Navigate to the remote renew section and select the correct Land Rover option (5EU40247 – 434MHz).

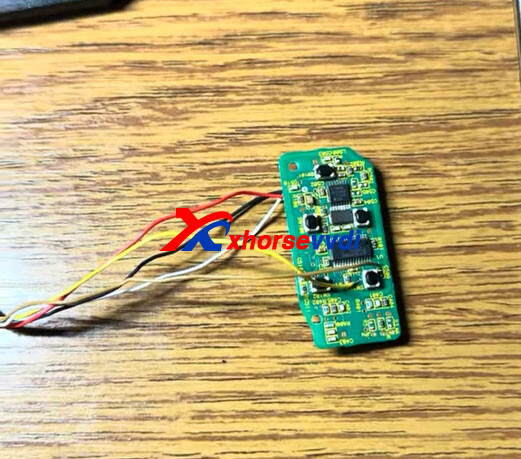

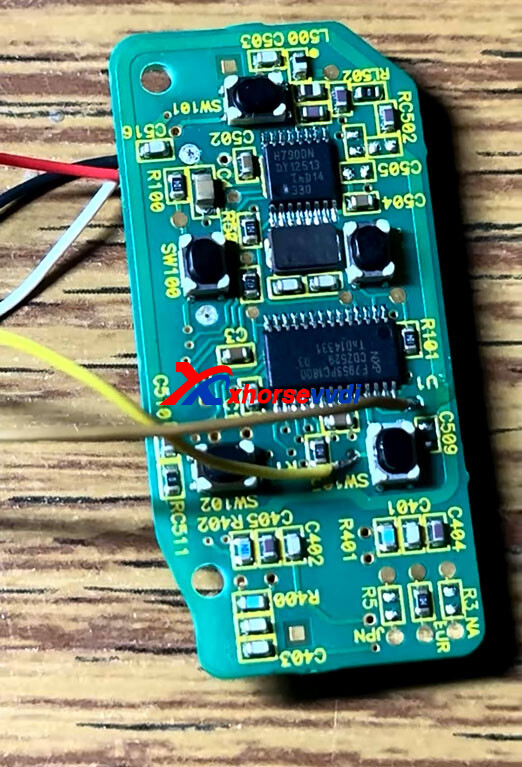

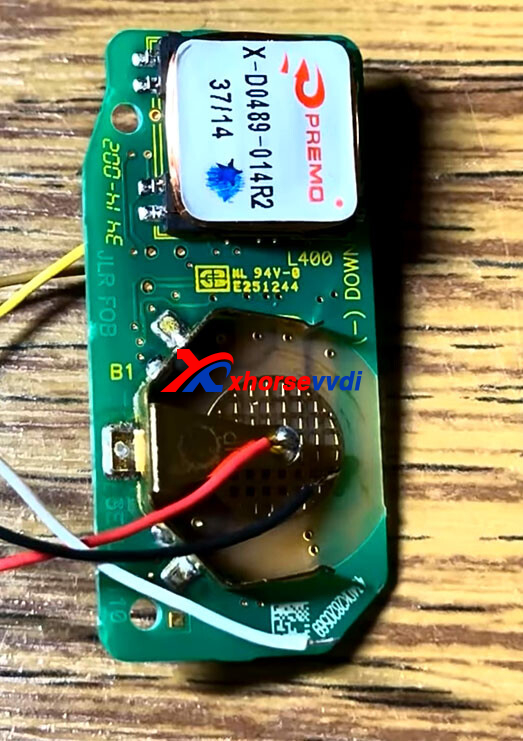

2.Solder Connection
Carefully solder the VVDI remote cable to the key’s circuit board. Ensure stable and accurate connections to avoid communication errors.

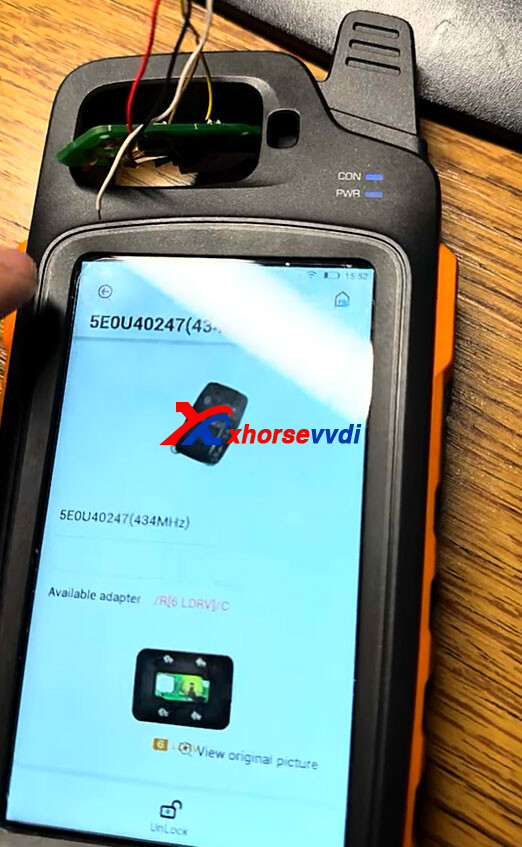

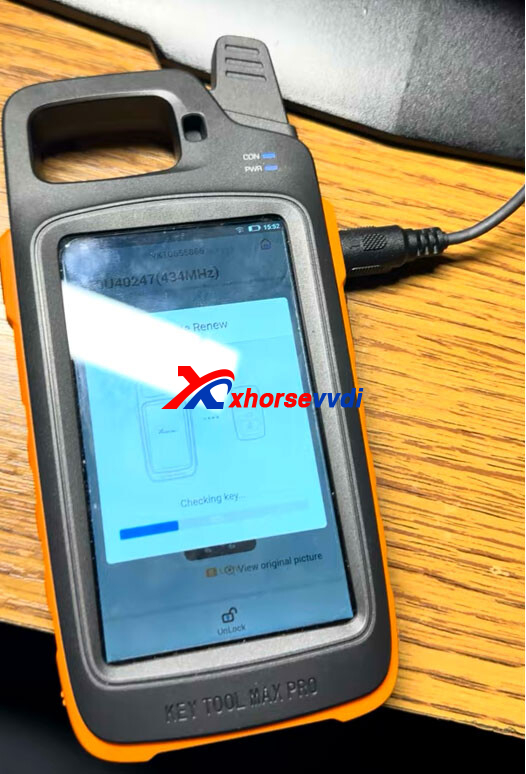

3.Start Renew Process
Initiate the renew function using the Key Tool Max Pro. The device will begin unlocking the ID49 smart key.

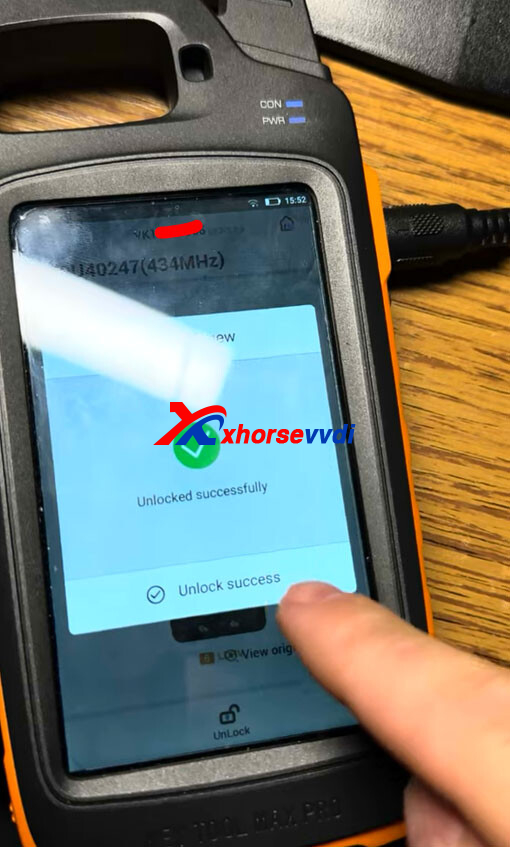

4.Key Unlocked Successfully
Once completed, the system confirms that the Land Rover ID49 key has been successfully unlocked.

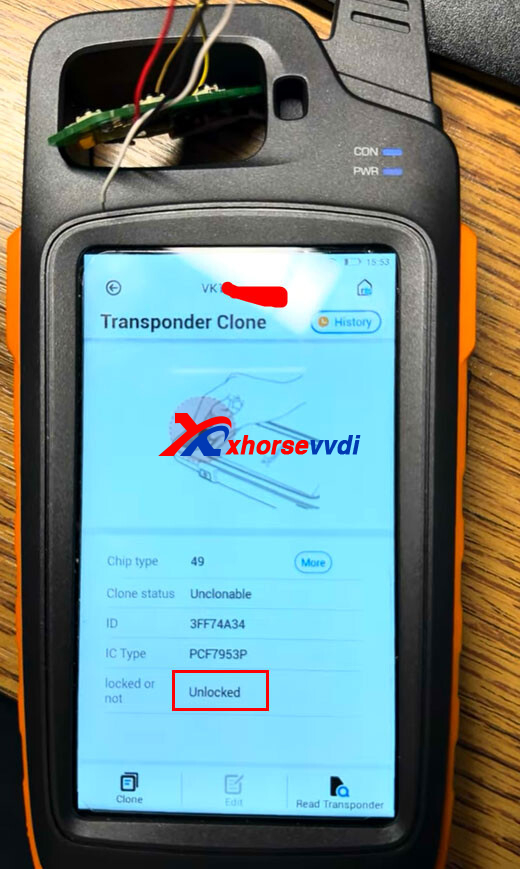

5.Verification
Read the key information again. The data now shows the key is in an unlocked/renewed state and ready for programming.
Result:
The Land Rover ID49 smart key was successfully renewed and can now be reused for key programming, saving both time and cost.
