For auto locksmiths dealing with modern Volkswagen systems, creating a dealer key for MQB49 5C/5D vehicles is a routine task—but accuracy is everything. With Xhorse tools like MULTI-PROG, VVDI2, and Key Tool MIDI, the process is streamlined, offering excellent compatibility with VVDI smart keys and reliable synchronization with the vehicle.
Step 1: Read IMMO Data
The foundation of any successful dealer key is the correct immobilizer data.
- Required tool: Use the Xhorse MULTI-PROG to access EEPROM or IMMO data.

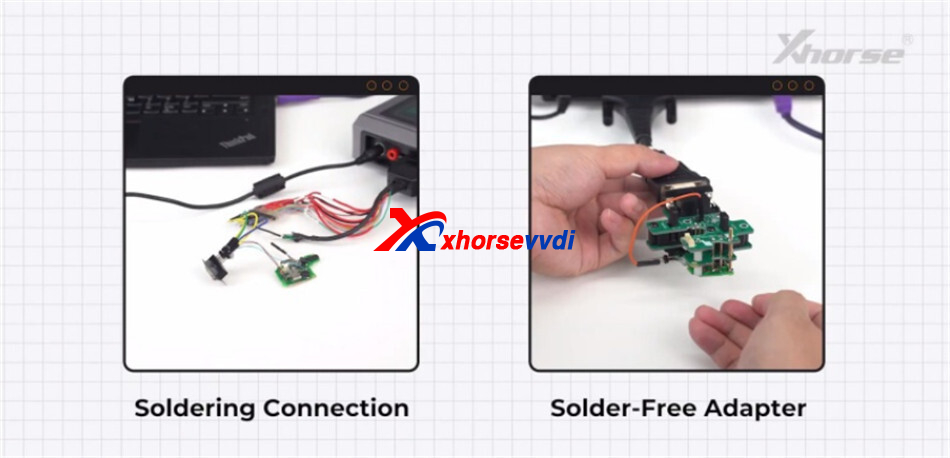

- Connection methods: Choose between direct soldering or a solder-free adapter depending on your setup.
- Procedure: Read and save the IMMO file securely. This file is critical for the key authorization stage.
For more details, reference:
Xhorse Multi-Prog: Two Methods to Program VW/Audi 5C & 5D Keys
Step 2: Prepare the VVDI Smart Key
Before programming, the key must be generated to match the MQB49 system.

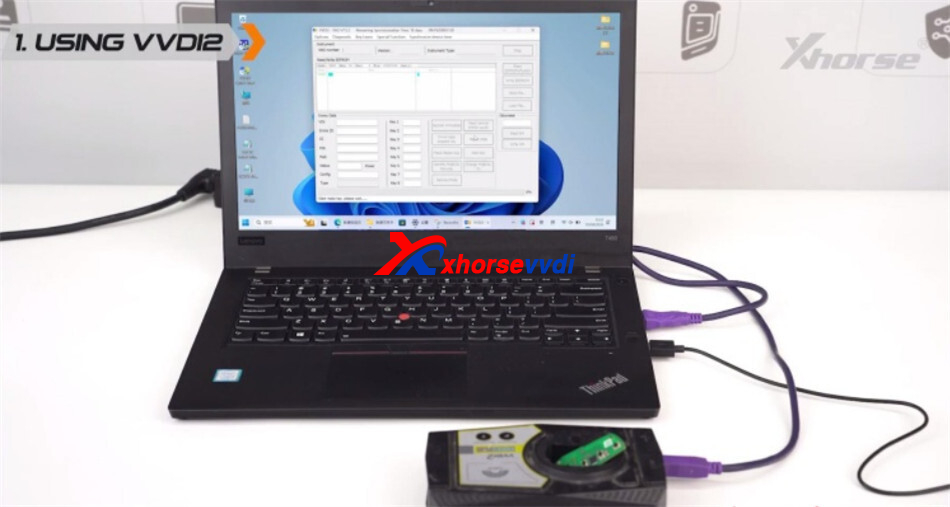

Option A – VVDI2 Programmer
Navigate to:

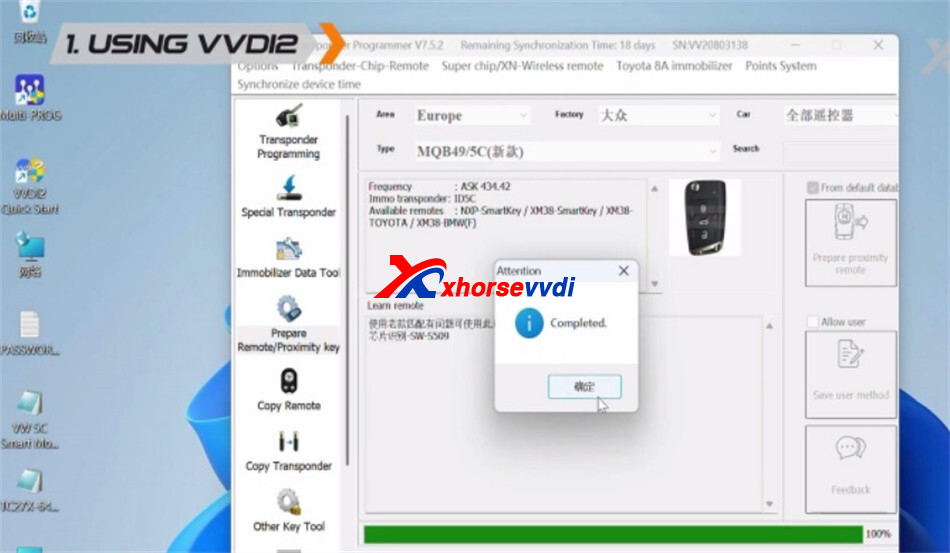

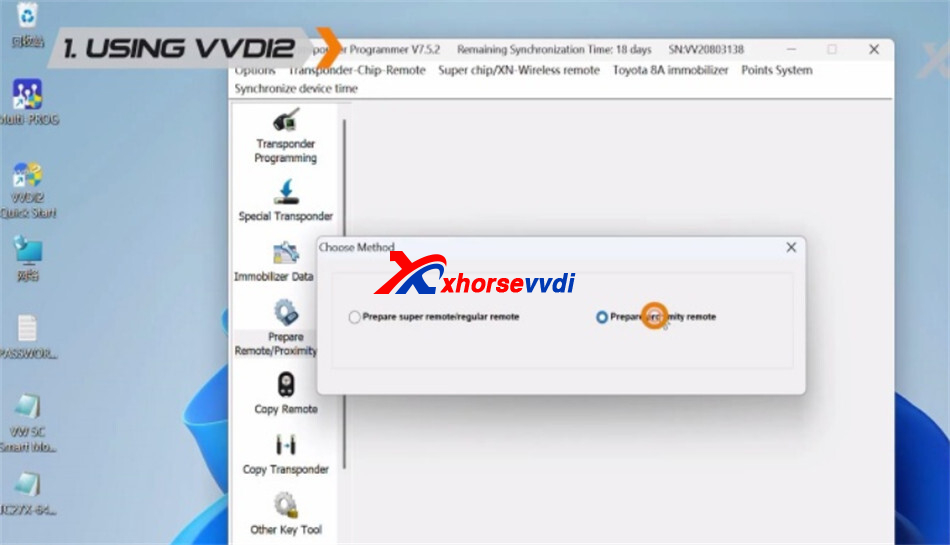

Transponder Programmer > Prepare Remote/Proximity Key > Prepare proximity remote > Europe > VW > MQB49/5C (New)
Insert the VVDI remote into the coil and select Generate.
Option B – Key Tool MIDI
Go to:

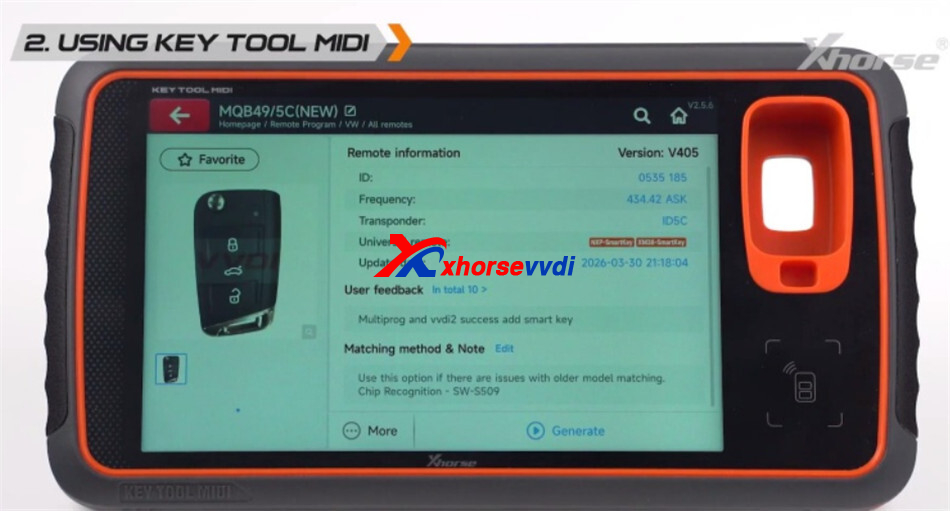

Remote Program > VW > MQB49/5C (New)

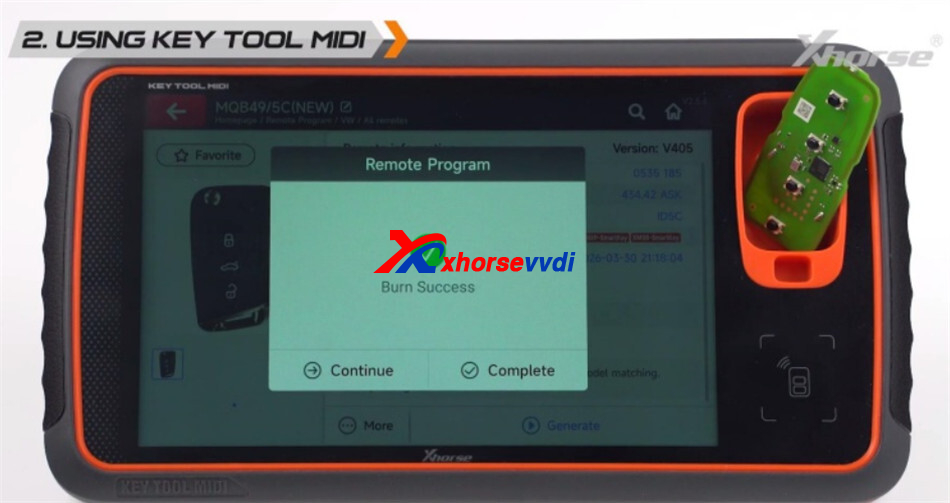

Place the VVDI key into the induction coil, press Generate, and wait for completion.
Step 3: Generate Dealer Key
This step links the prepared key with the vehicle’s IMMO data.
- Using Xhorse VVDI2 Programmer:

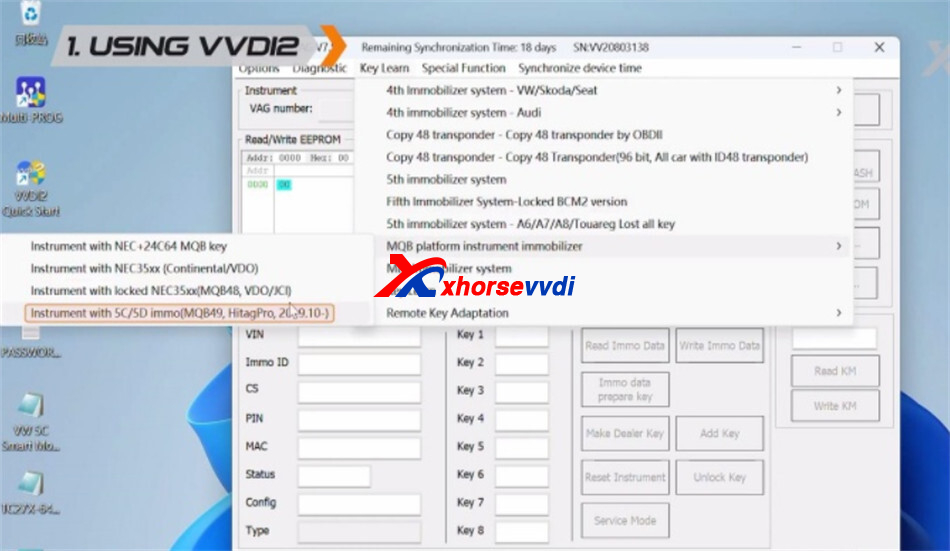

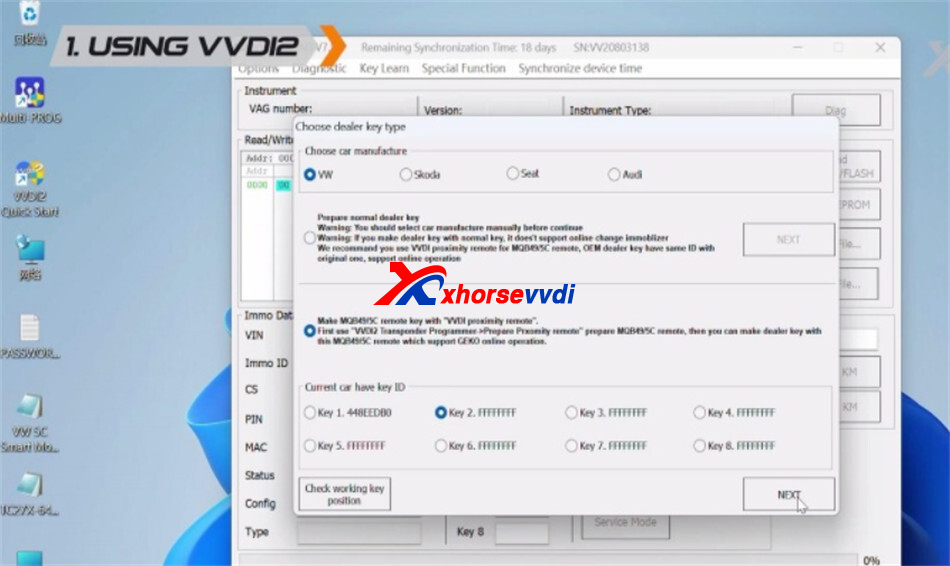

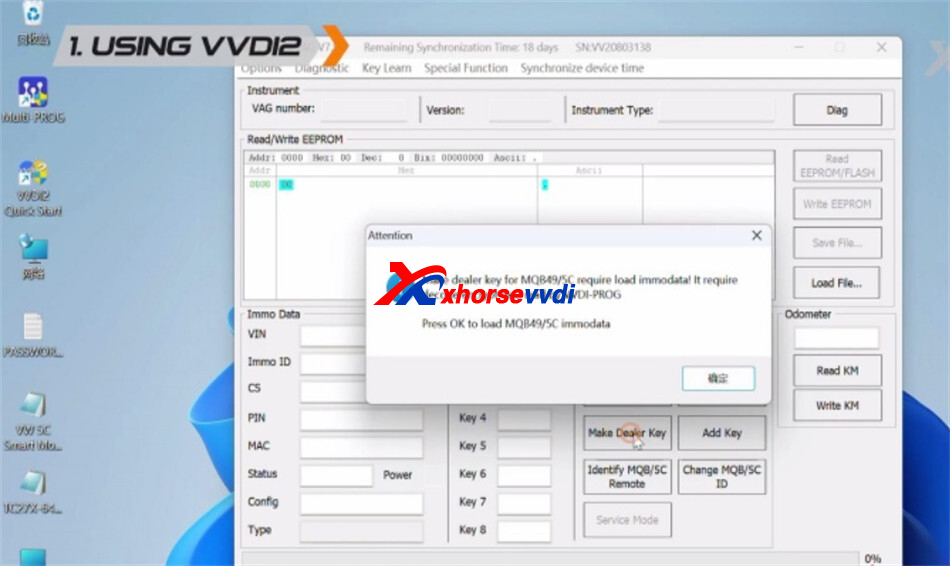

VW > Key Learn > MQB platform instrument immobilizer > Instrument with 5C/5D IMMO (MQB49, HitagPro) > Make Dealer Key > Make MQB49/5C remote key with VVDI proximity remote
- Using Key Tool MIDI:

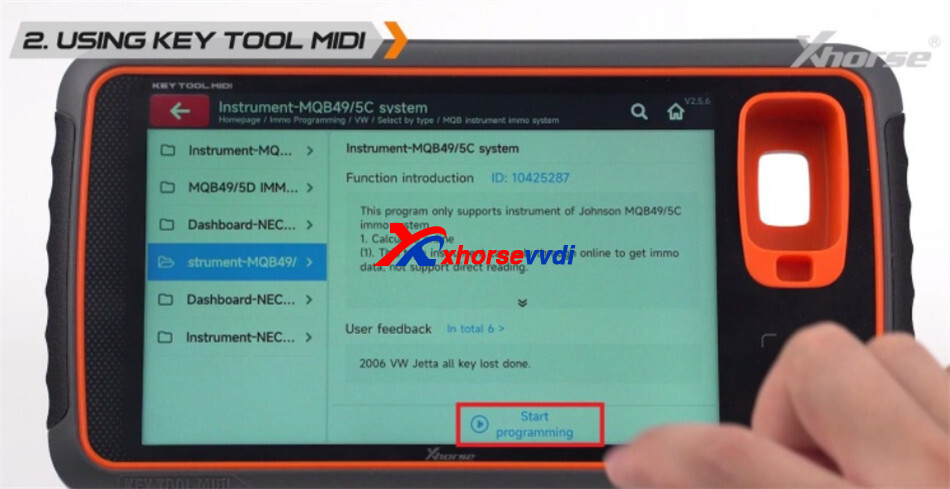

IMMO Programming > VW > Select by Type > MQB instrument IMMO system > MQB49/5C > Start programming

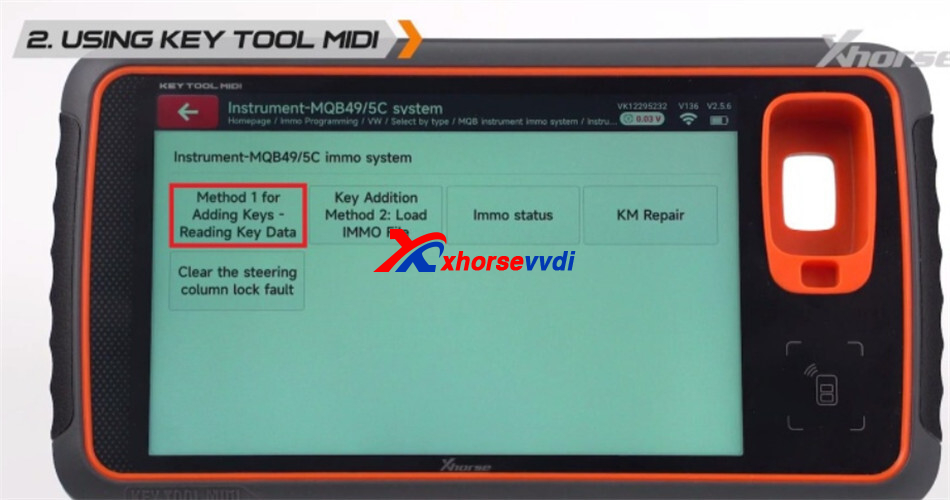

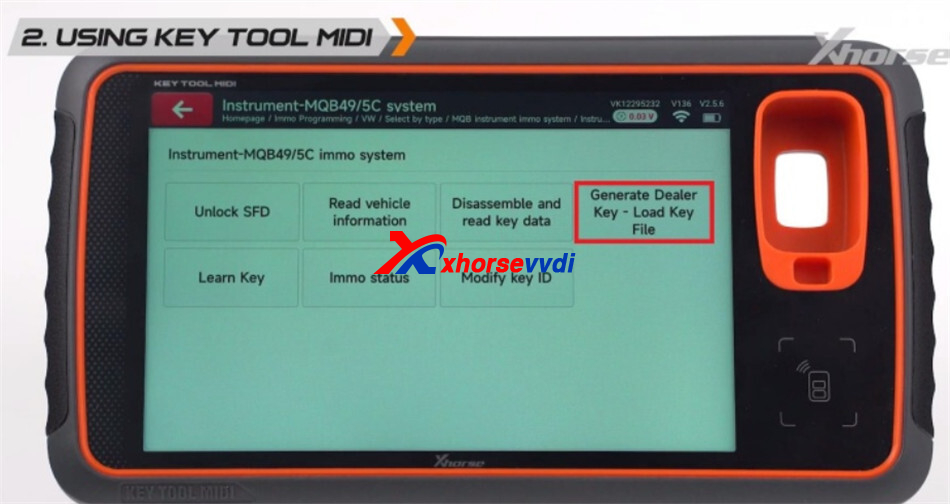

Choose Add Key (Method 1) → Keyless Go → Generate Dealer Key → Load Key File
Load the saved IMMO file, keep the key in the coil, and start the generation process.
Step 4: Program Key to Vehicle

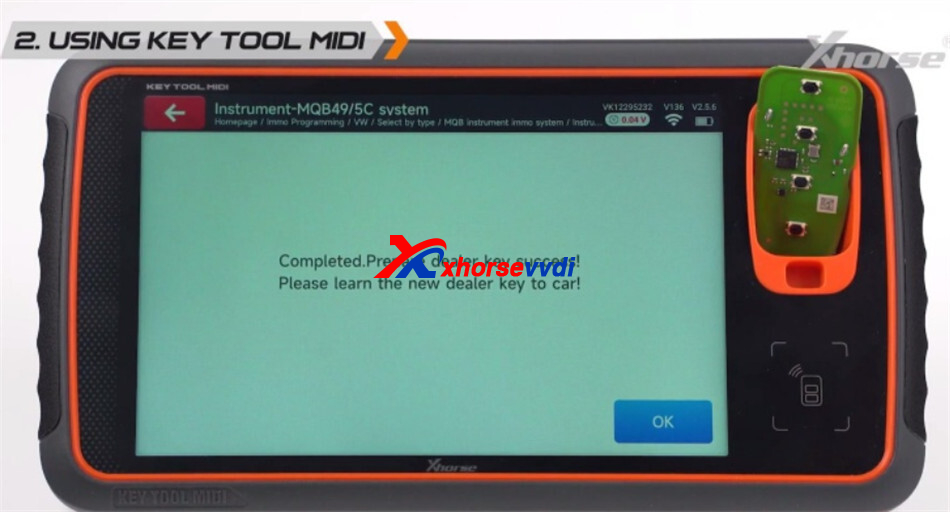

Once the system confirms “Dealer key generated successfully,” proceed with key learning.
Use VVDI2 Programmer, Key Tool MIDI, or Key Tool Plus to complete the synchronization. This ensures the new key is fully recognized by the immobilizer and functions like an original.
With the right tools and careful execution, generating MQB49 5C/5D dealer keys becomes a fast and dependable job—perfect for everyday locksmith work.
