Skoda Scala 2023 MQB49 5C Key Wiring Diagram for VVDI Key Tool Plus or Multi-Prog

Problem:

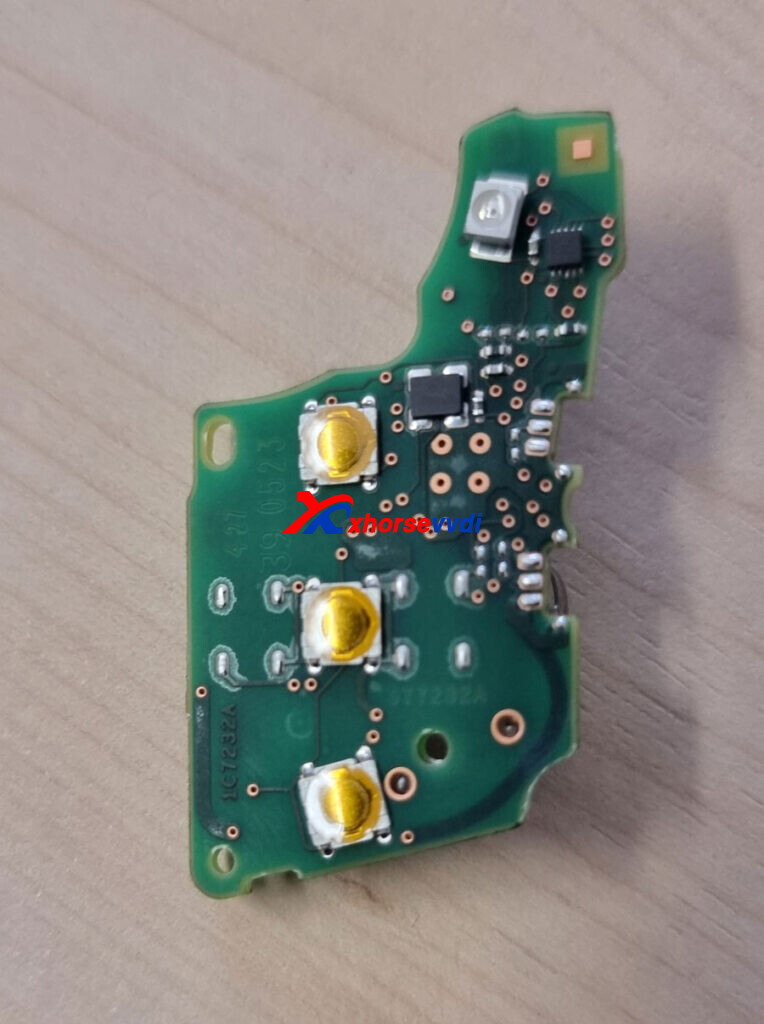

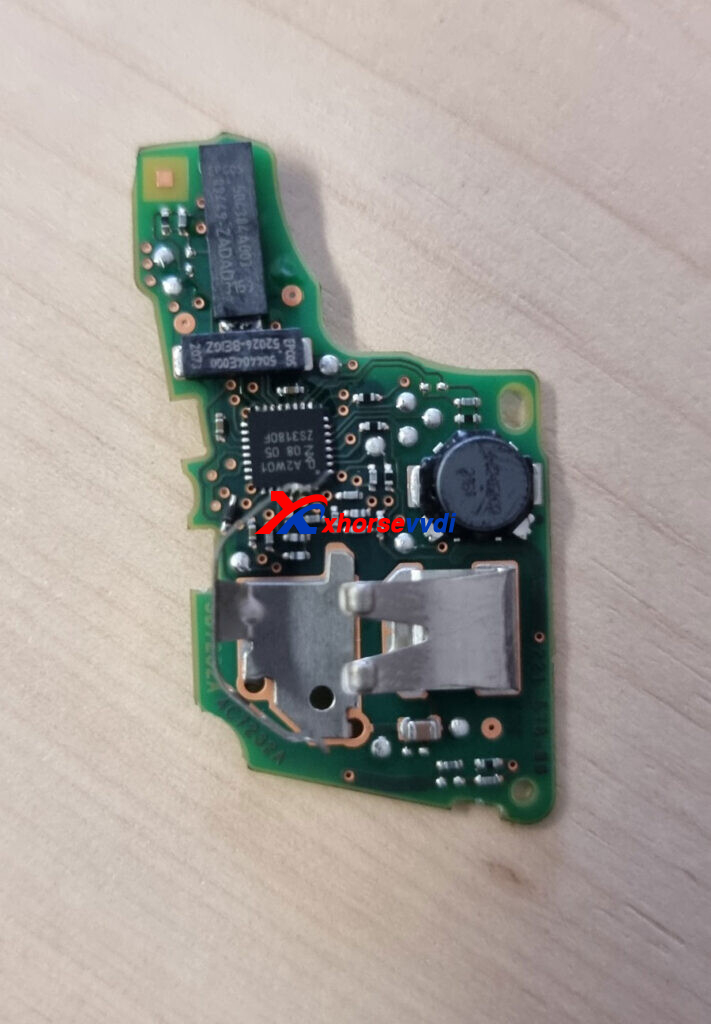

Tried to read the 5C key on a 2023 Skoda Scala using Xhorse VVDI Key Tool Plus and Multi-Prog, but the available PCB schematics don’t match the key.

Does anyone know the correct wiring diagram for this key?

skoda-scala-2023-mqb49-5c-key-wiring-diagram-for-vvdi-key-tool-plus-or-multi-prog-1

skoda-scala-2023-mqb49-5c-key-wiring-diagram-for-vvdi-key-tool-plus-or-multi-prog-2

Here’s the hint.

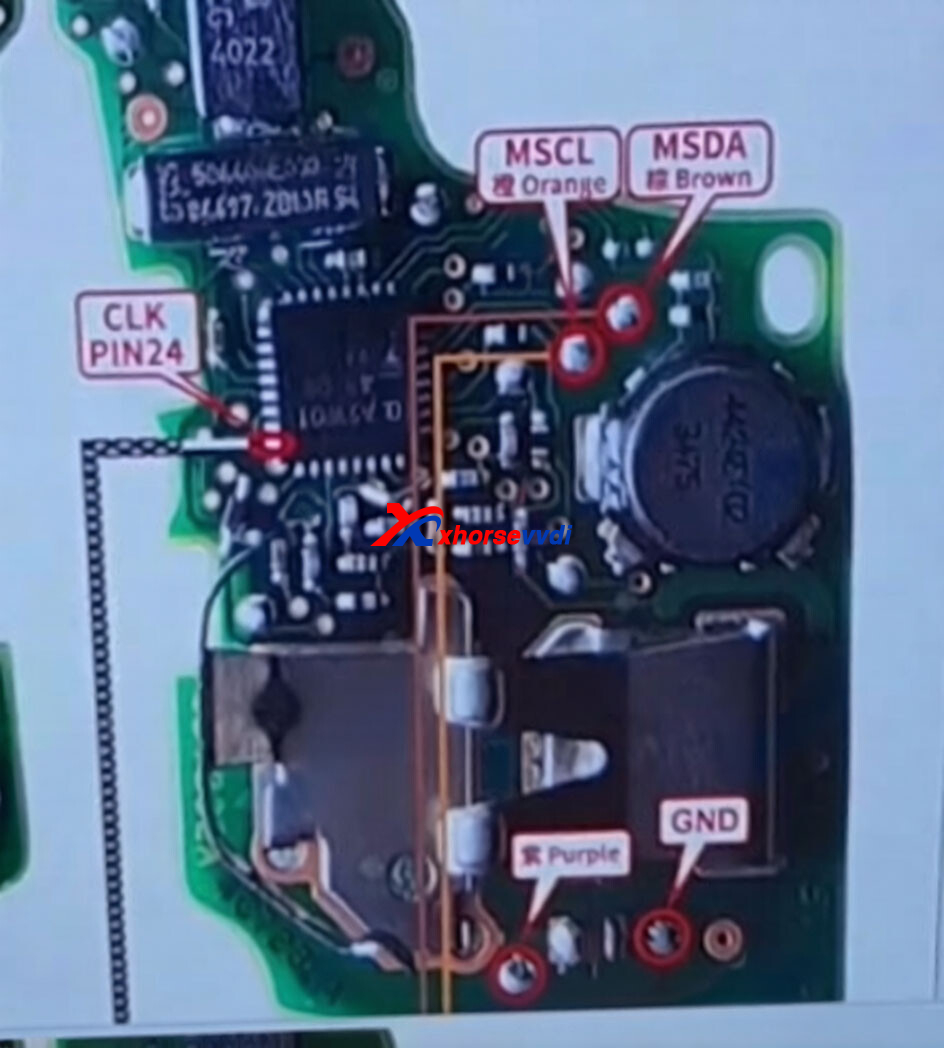

Pinout is attached.

skoda-scala-2023-mqb49-5c-key-wiring-diagram-for-vvdi-key-tool-plus-or-multi-prog-3

Or use the Godiag 5C solder-free adapter for a solder-free connection.

The XSMQB1EN works—just make sure you generate the correct key type.

Select VW and then All Remotes to generate it.
