How to Read 2019-2022 Kia Soul 4A PIN Code with Xhorse Key Tool Plus?

The Xhorse VVDI Key Tool Plus Pad can read the PIN code for 2019–2022 Kia Soul models equipped with the newer 4A chip smart key.

Many programmers struggle with these newer Kia systems, while Key Tool Plus provides a reliable solution for this step.

Read the PIN code with Key Tool Plus:

The process starts by reading the 4A chip, then sending the data to the server to calculate the PIN code.

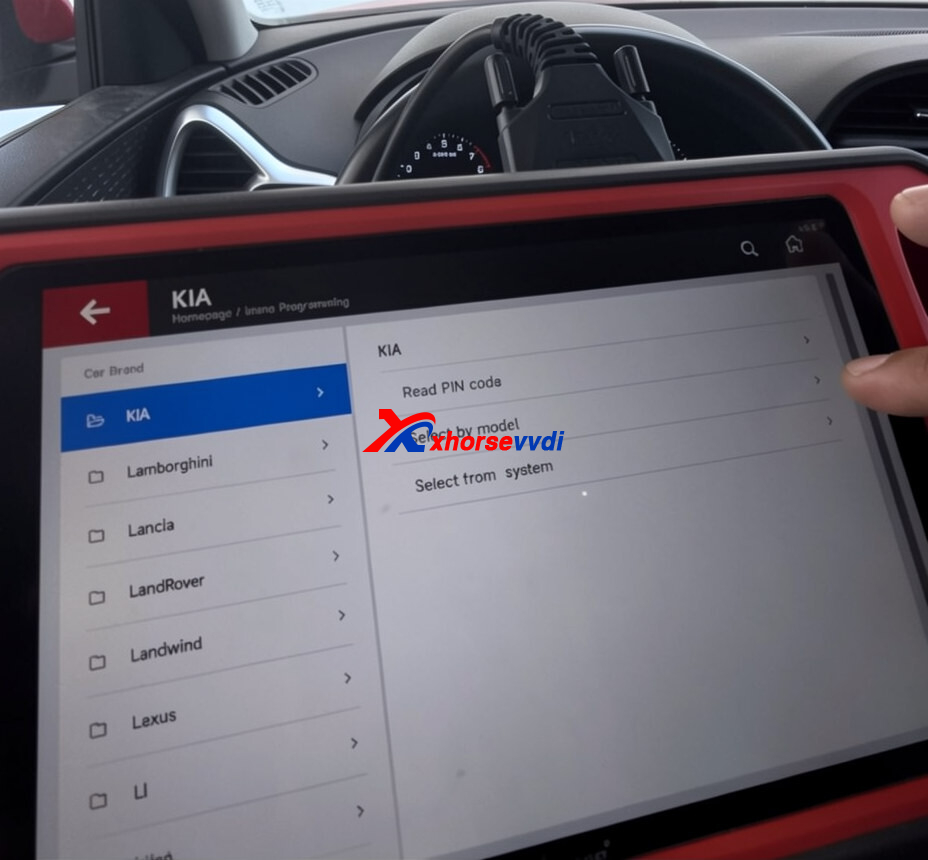

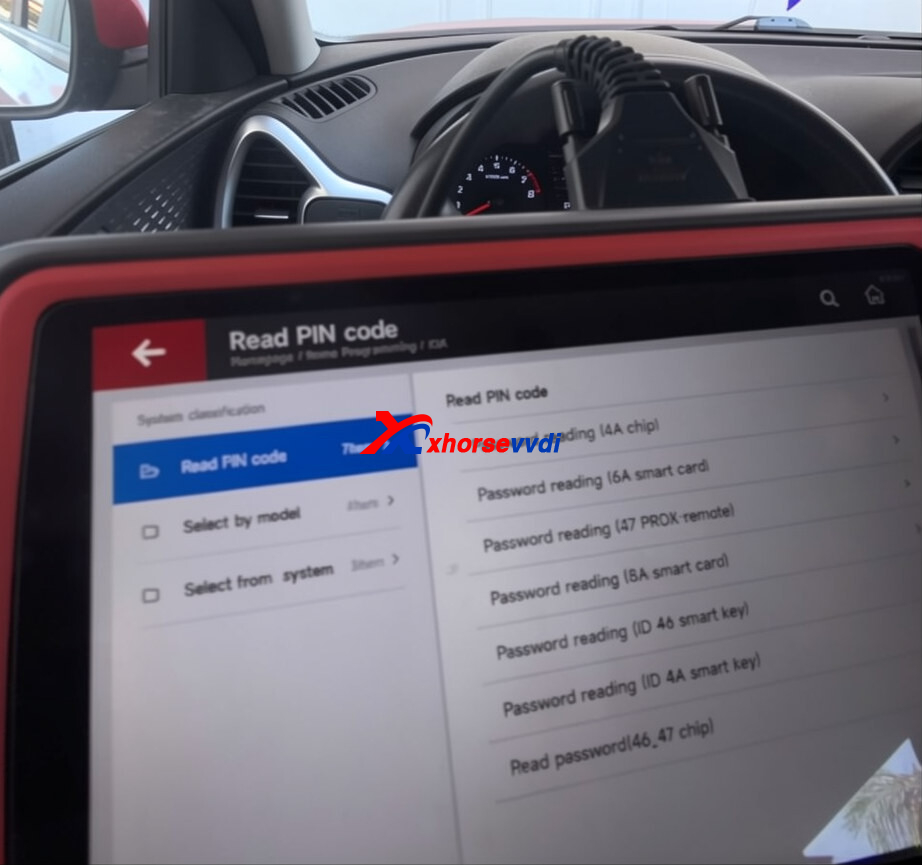

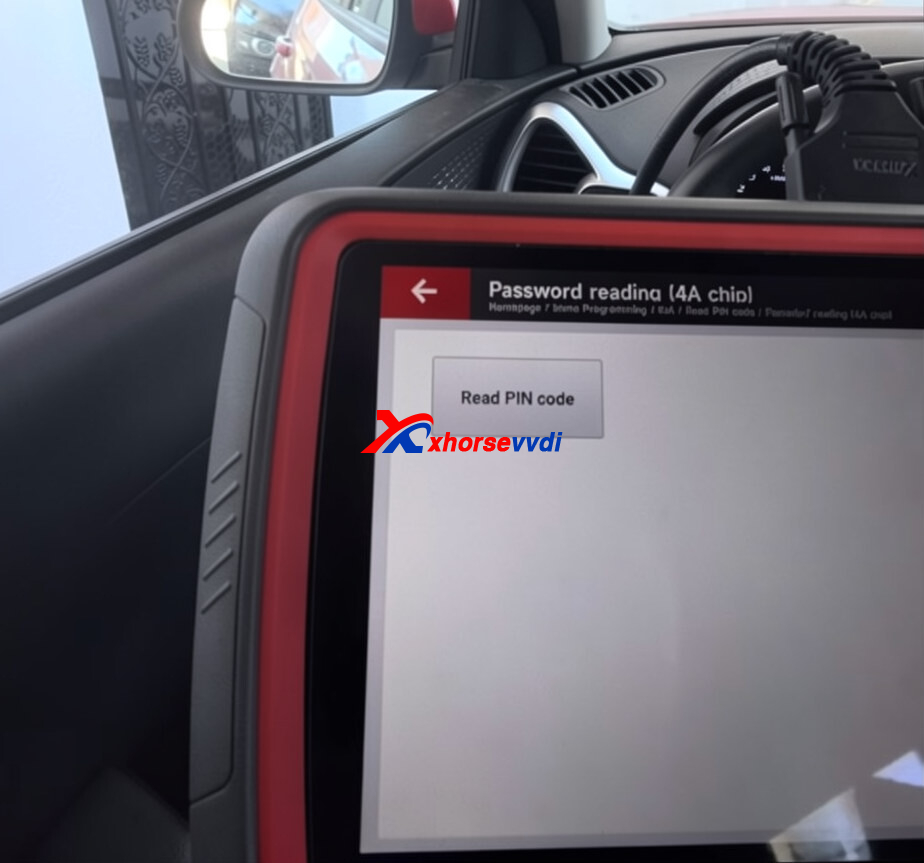

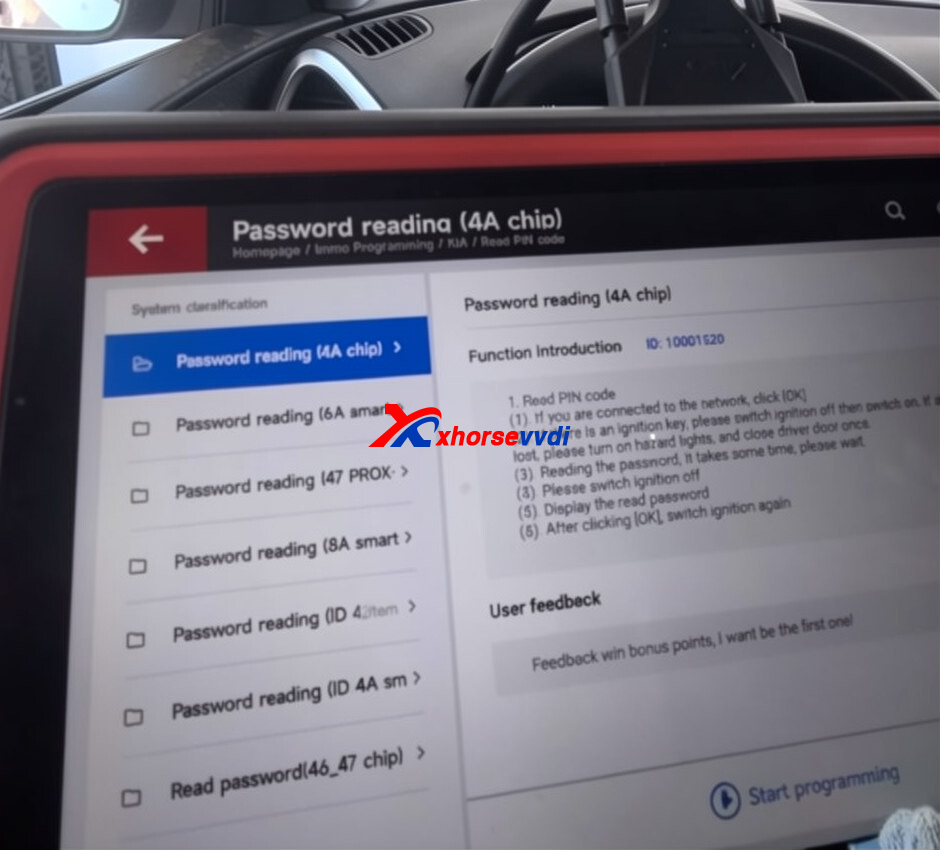

Menu path: IMMO Programming → Kia → Read PIN Code → Password Reading (4A Chip) → Read PIN Code.

how-to-read-2019-2022-kia-soul-4a-pin-code-with-xhorse-key-tool-plus-1

how-to-read-2019-2022-kia-soul-4a-pin-code-with-xhorse-key-tool-plus-2

how-to-read-2019-2022-kia-soul-4a-pin-code-with-xhorse-key-tool-plus-3

how-to-read-2019-2022-kia-soul-4a-pin-code-with-xhorse-key-tool-plus-4

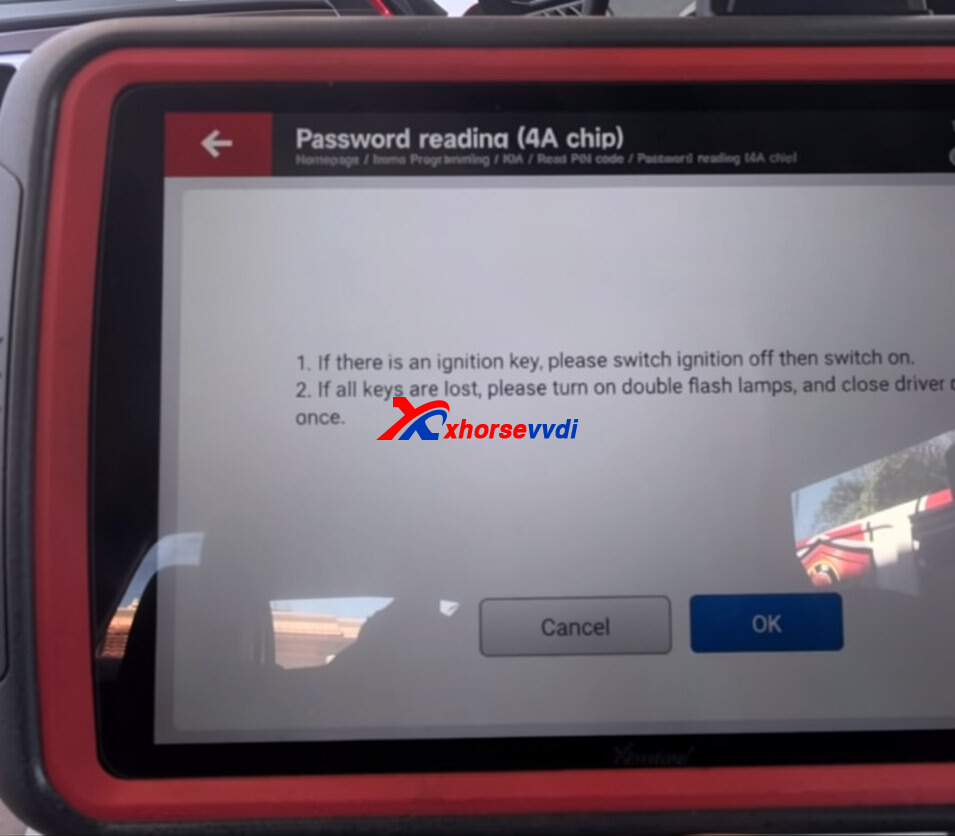

Key point for key status:
If you have a key, turn the ignition on.
If all keys are lost, switch on the hazard lights.

how-to-read-2019-2022-kia-soul-4a-pin-code-with-xhorse-key-tool-plus-5

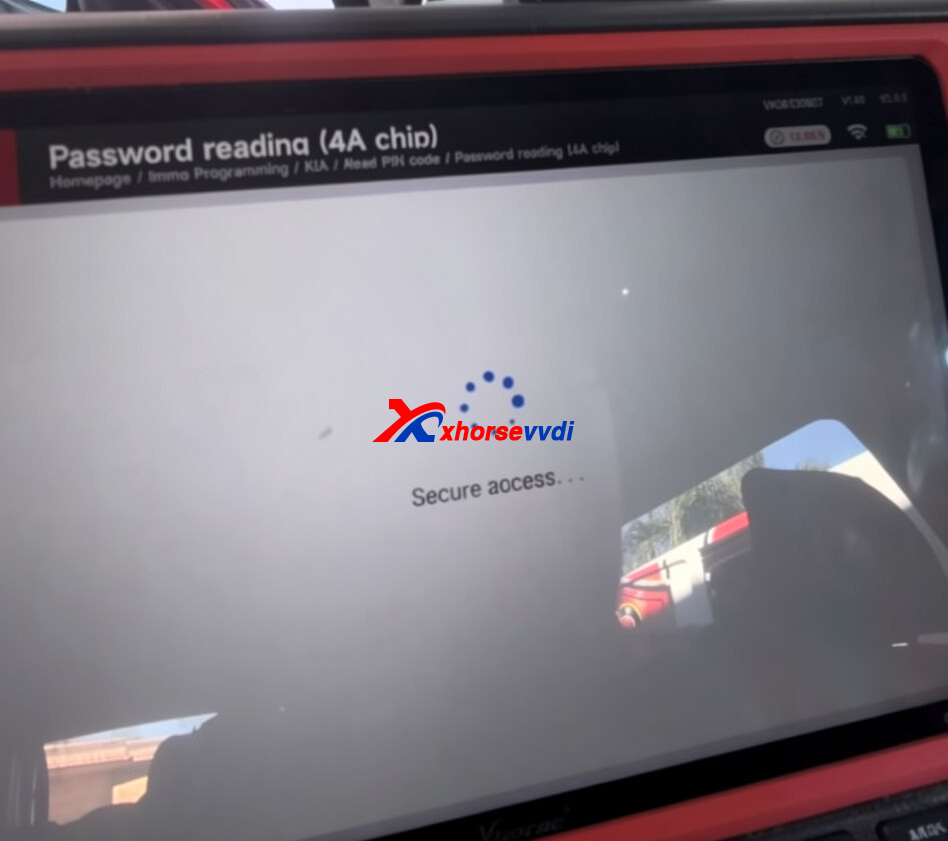

The tool then establishes secure access, uploads the data, and calculates the password.
A stable Wi-Fi or hotspot connection is required for this process.

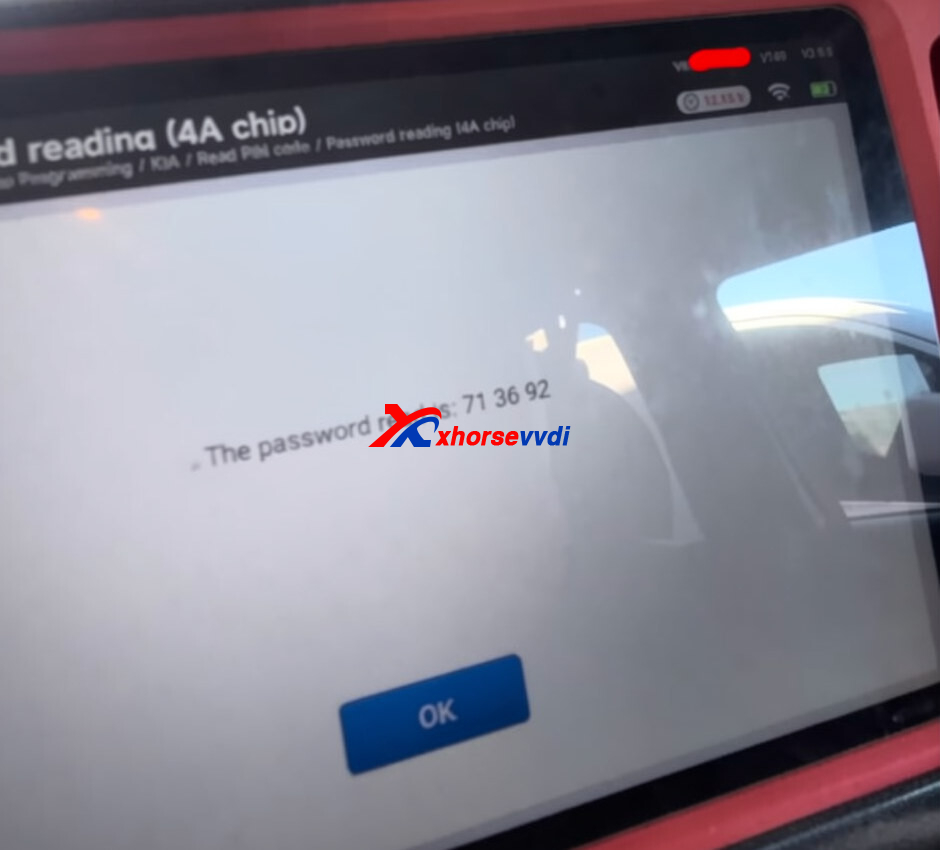

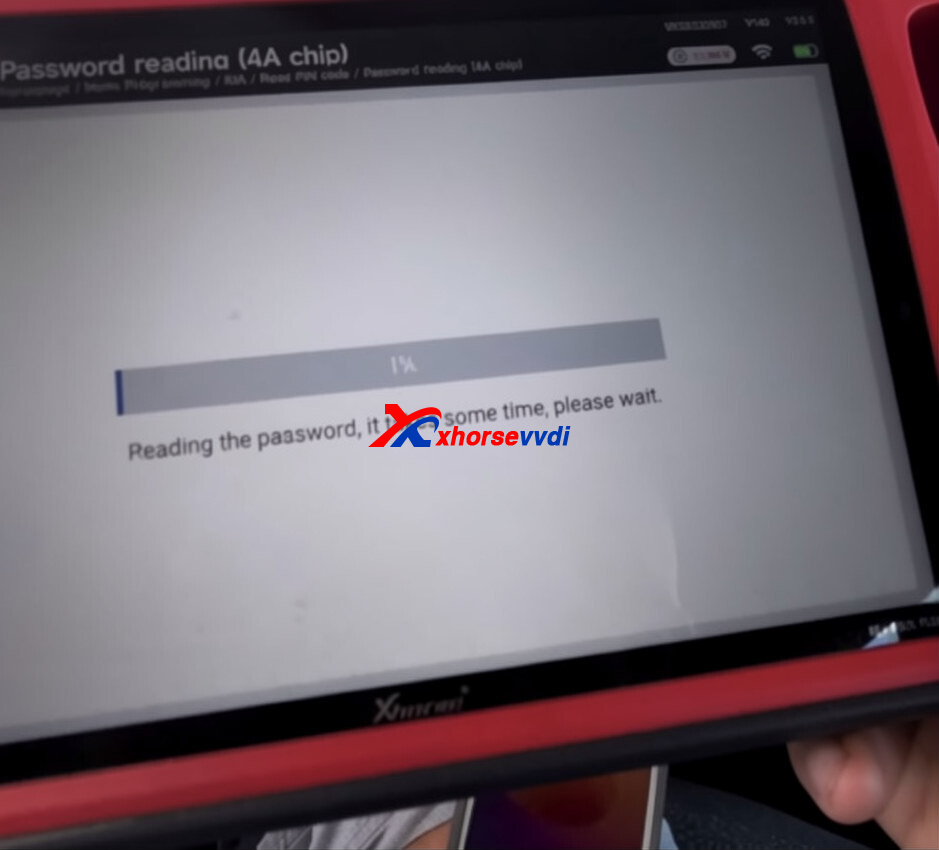

Password retrieval may take some time, so please wait patiently. When prompted, switch the ignition off, and the password will be retrieved successfully.

how-to-read-2019-2022-kia-soul-4a-pin-code-with-xhorse-key-tool-plus-6
