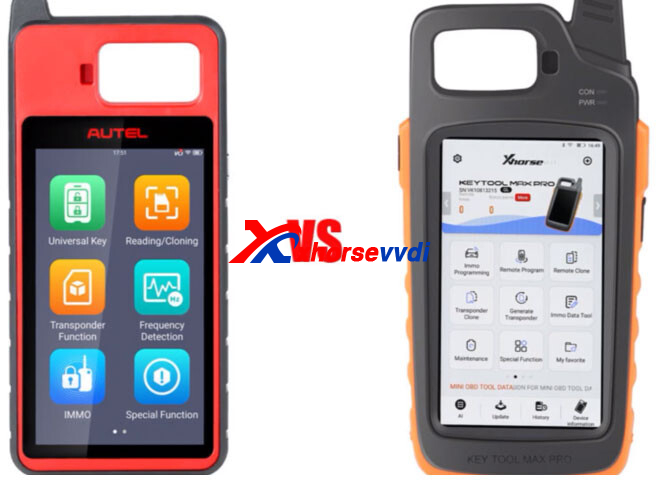

After using both the Autel KM100 and Xhorse VVDI Key Tool Max Pro on real customer vehicles, I’ve found they serve different purposes.
KM100 is excellent for fast, guided key programming.
Xhorse shines when a job requires deeper immobilizer access and more advanced options.
The right tool depends on the vehicle and the situation.
Practical Workshop Comparison
The difference between these two tools becomes clear after a few jobs.
KM100 is designed for simplicity. The workflow is guided, the menus are straightforward, and most common key programming tasks can be completed with minimal decision-making.
Key Tool Max PRO takes a different approach. It offers more flexibility and advanced functions, but the technician needs a better understanding of the process and possible exceptions.
In simple terms:
KM100 = guided operation, beginner-friendly
Key Tool Max PRO = advanced control, technician-driven
Beginner locksmiths and entry-level technicians often prefer the KM100 because it keeps the workflow simple and guided. It is well-suited for mobile work, routine key additions, and standard immobilizer systems where the procedure is predictable. The focus is on reducing steps and minimizing the need for deep system interpretation.
More advanced users tend to lean toward the Key Tool Max PRO. This group usually includes experienced locksmiths and workshop technicians working on mixed-platform vehicles or modified modules. These users are more comfortable handling immobilizer structures, adapting procedures, and making decisions based on system feedback rather than fixed menus.
The KM100 is designed to reduce decision-making during programming. It guides the user through a structured path, which helps avoid errors in common scenarios. However, this simplicity can become a limitation when the vehicle’s configuration does not match standard data patterns or when modules have been replaced or modified.
The Key Tool Max PRO, on the other hand, offers greater operational flexibility. It allows separation of processes such as RF generation, transponder handling, and key preparation. This makes it more adaptable in complex situations where a fully automated routine cannot complete the job.
Real workshop situations highlight this difference clearly. For example, a Volkswagen Golf with a mixed module configuration similar to a Jetta-style comfort setup can behave unpredictably during programming. In such cases, tool behavior becomes critical.
With KM100, the programming may follow the standard path but stop when the system configuration does not align with expected immobilizer data. The workflow is limited to predefined logic, which can restrict progress in non-standard setups.
With the Key Tool Max PRO, technicians can switch to a more manual approach. By handling RF generation and transponder operations separately, the process can be adapted step by step. This flexibility often allows the job to continue and complete successfully even when the system is not fully consistent.
Autel KM100
Strengths:
- Very smooth and guided operation flow
- Fast and efficient for common key programming tasks
- Stable performance with predictable results
- User-friendly interface, ideal for beginners and training
Limitations:
- Less adaptable in complex or uncommon situations
- Programming logic is relatively fixed
- Error descriptions can be vague or unhelpful
- Limited options for advanced workarounds
Xhorse Key Tool Max Pro
Strengths:
- Highly flexible for key generation and adaptation
- Strong compatibility with non-standard immobilizer systems
- Provides deeper control over programming procedures
- Regular feature expansions through updates
Limitations:
- Workflow is more advanced and less beginner-friendly
- Requires solid technical experience to operate effectively
- Update stability can vary depending on version
- Cloud-based processing may add extra steps and delay
Bottom Line
No single device covers everything perfectly.
KM100 is great for speed and basic tasks.
VVDI Key Tool Max PRO is stronger for complex procedures.
Most professionals keep both in their toolbox instead of trying to force one to do everything.
