Xhorse Key Tool Plus Program Yamaha Tmax 560 2021 Motorcycle Key Successfully

Customer Feedback:

Here is a real-world experience of programming a Yamaha TMAX 560 2021 motorcycle key using Xhorse VVDI Key Tool Plus.

The Yamaha SCU is an 18-pin version, brand new from Yamaha (P/N: B7M-86265-01), and uses an S24C04 EEPROM. Keydiy does not support this version and is limited to older models using 24C02.

The S24C04 EEPROM was read directly through the SO-8 connection with Xhorse VVDI Key Tool Plus. A compatible version with the known password 757338 was then written to the EEPROM.

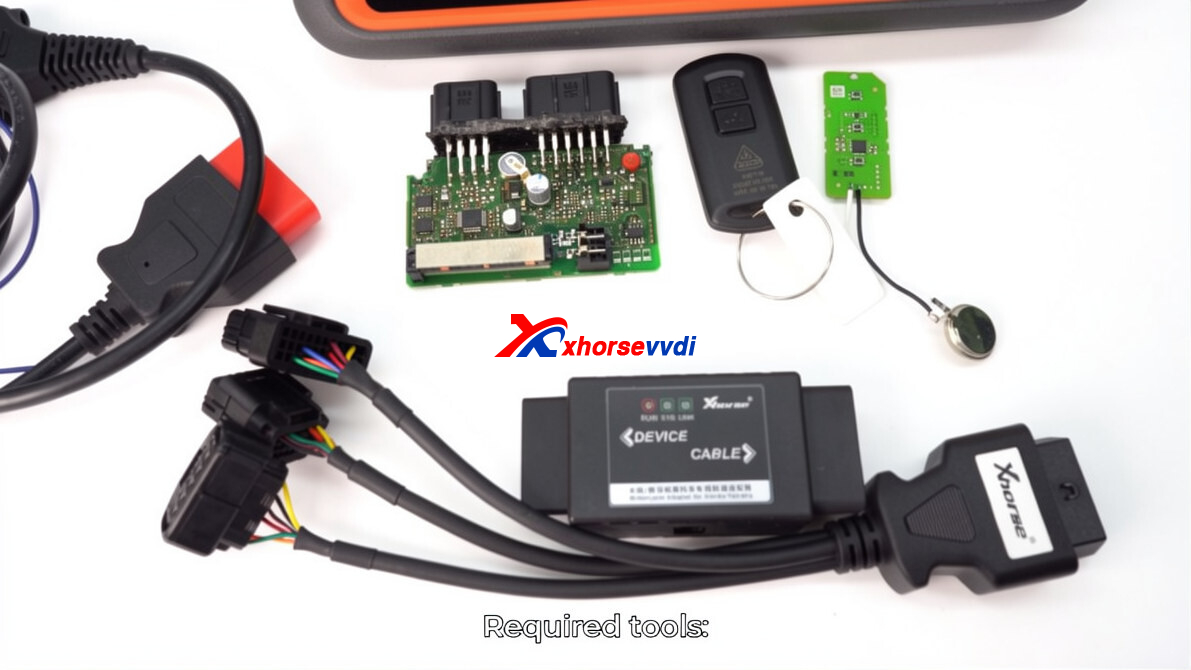

With the Xhorse XDKP92GL Motorcycle adapter, the key learning process was completed successfully using Key Tool Plus in about 3 minutes.
