Xhorse MLB Tool supports adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models. It is working with work with VVDI2, VVDI Key Tool Plus.
The solder free adapter help you easier connection, work with Enhanced Safety (Need to remove two capacitors)
And here is the simple step about Xhorse MLB Tool+ MLB Adapter Read 2020 Audi A8 MLB Key.

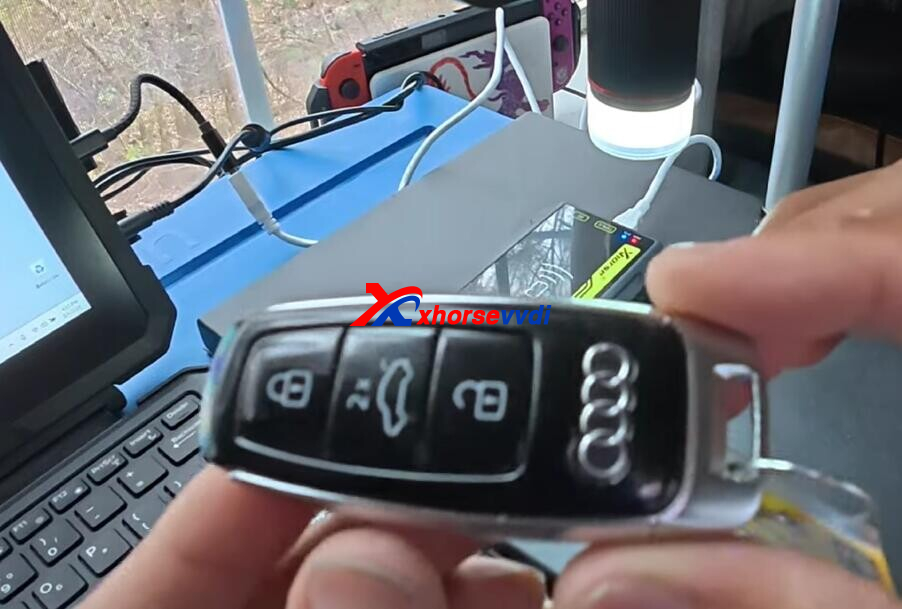

Here is the original key.

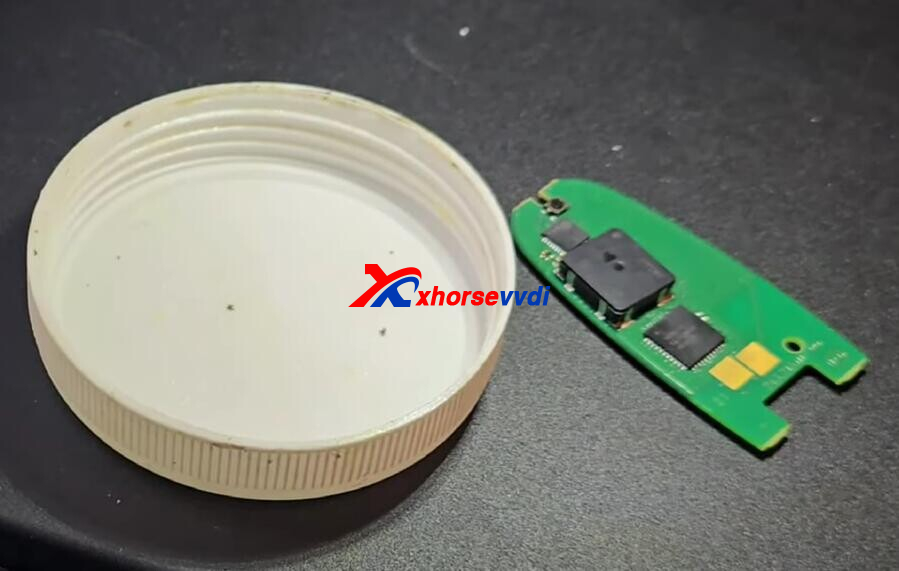

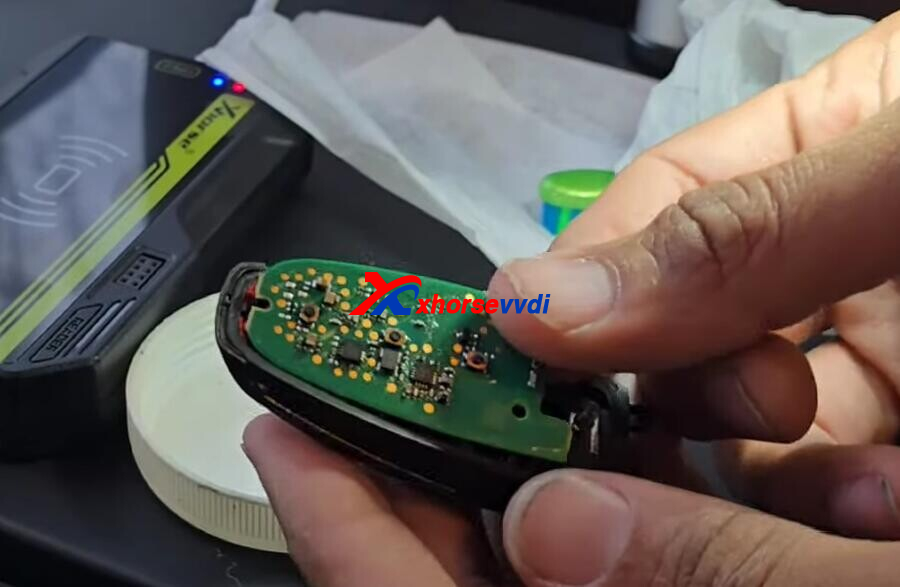

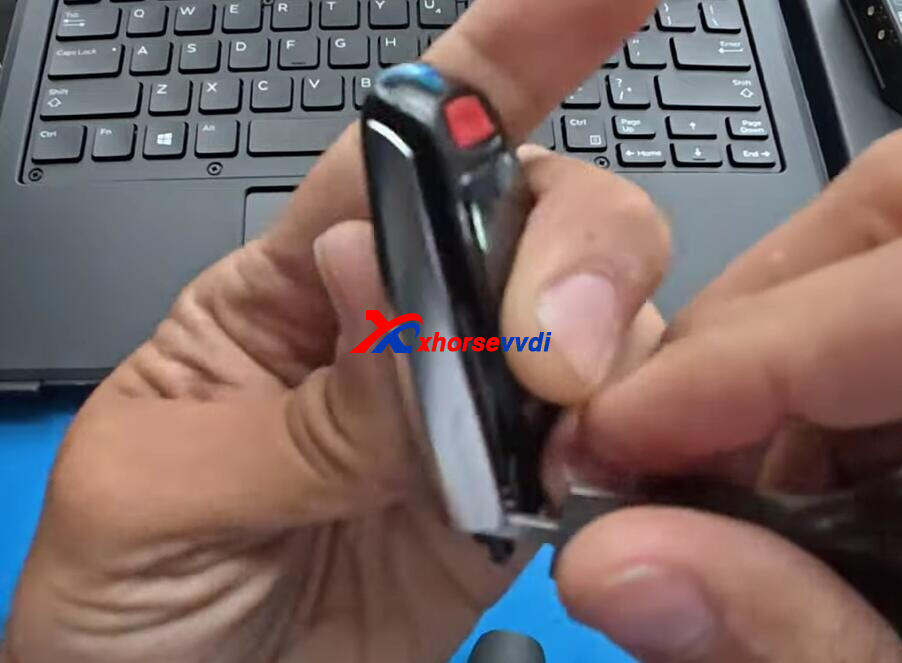

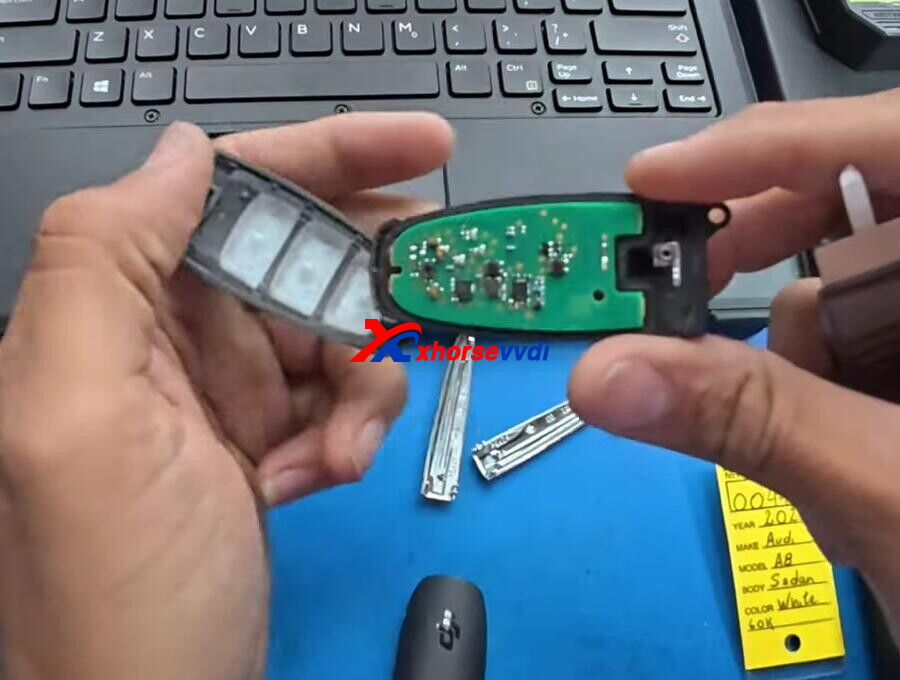

Remove the key shell, take out the PCB.

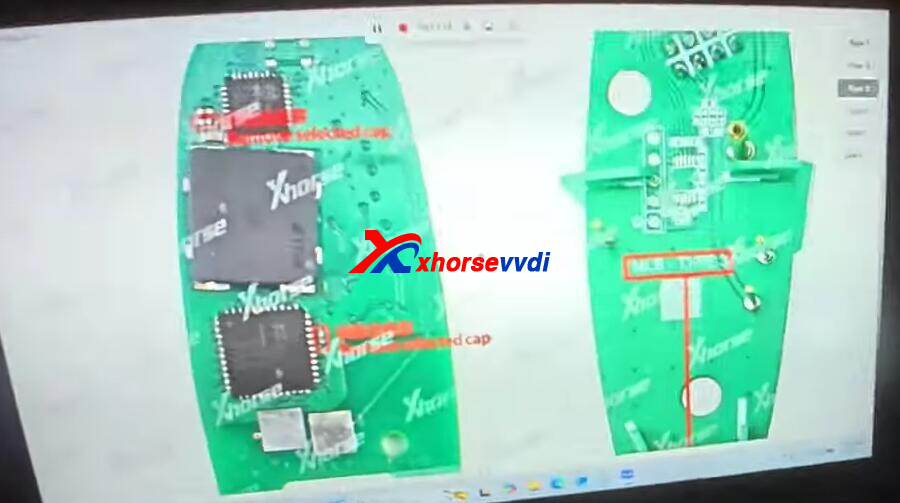

Check the PCB type in VVDI MLB Tool software, and the connection diagram. Type 3.

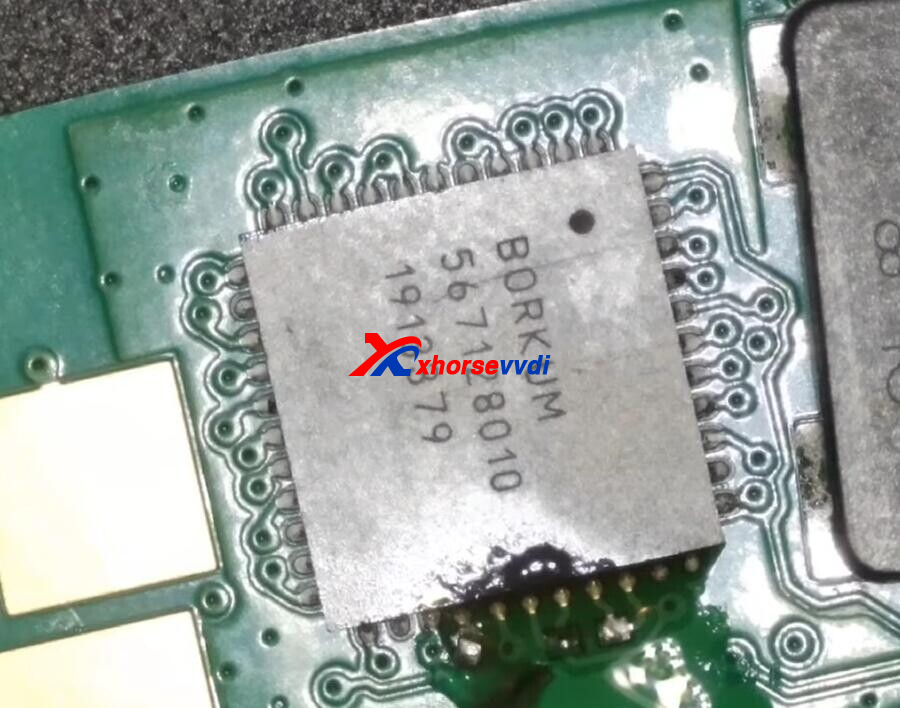

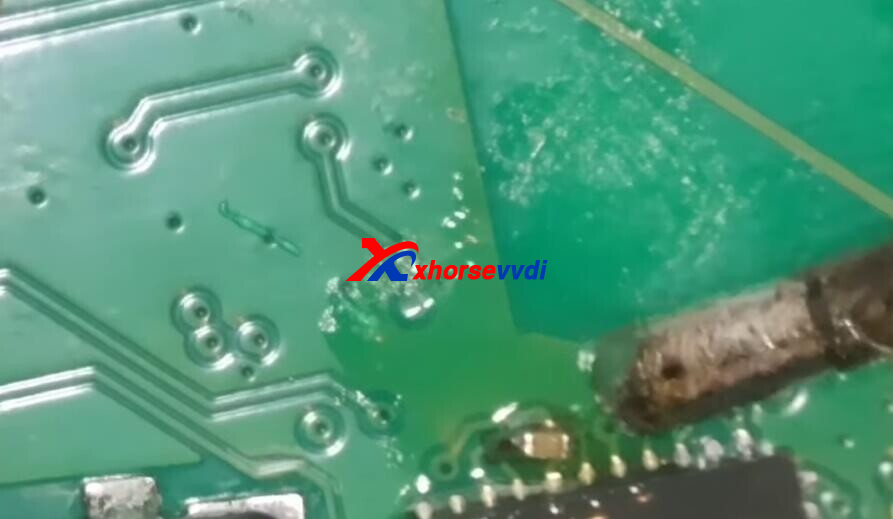

Remove the two capacitors.

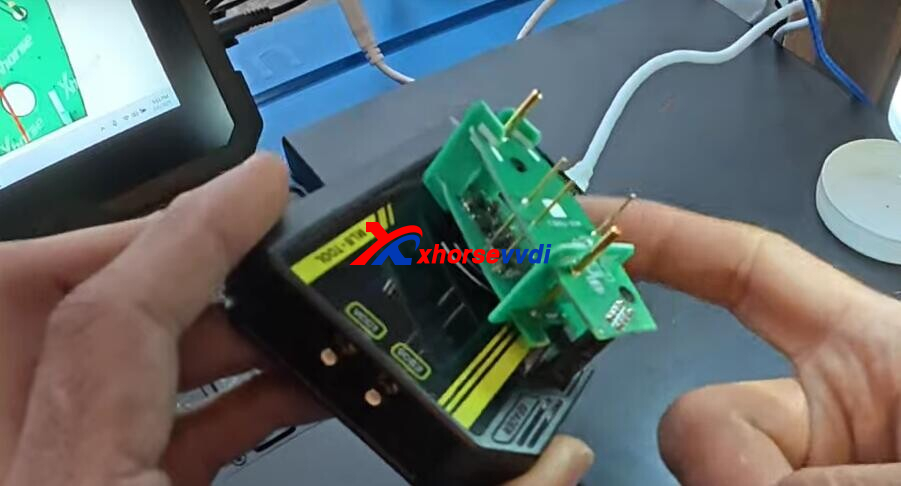

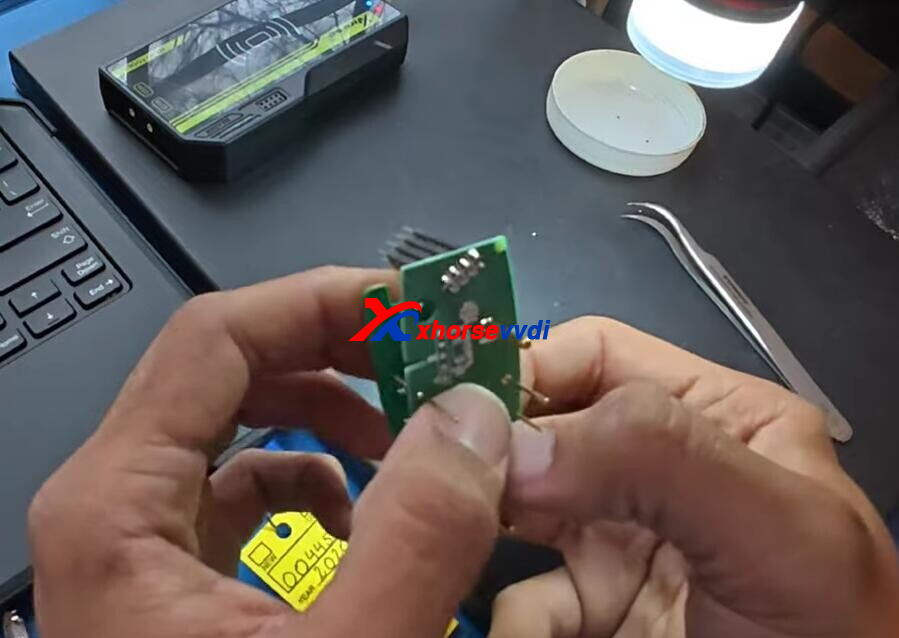

Connect the PCB with Xhorse MLB Solder Free adapter, please carefully check the connection.

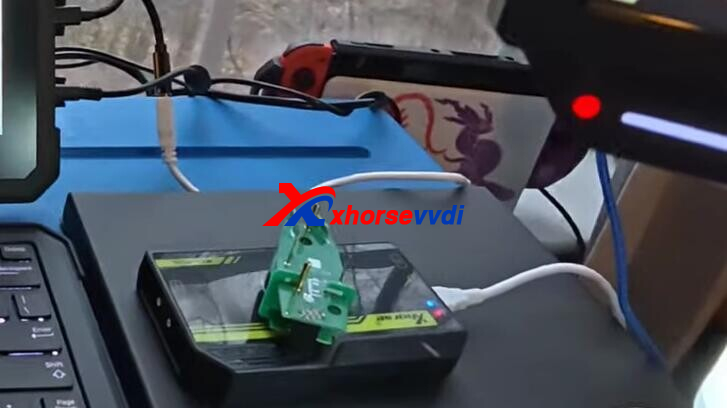

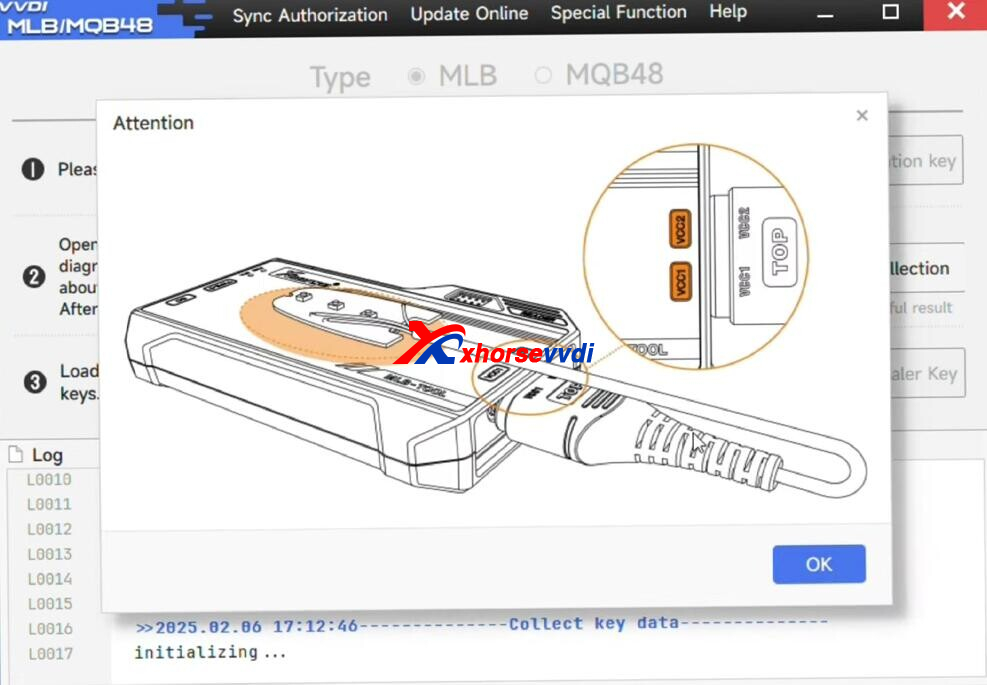

Put the MLB key in the coil of VVDI MLB Tool, and connect the MLB Tool with computer.

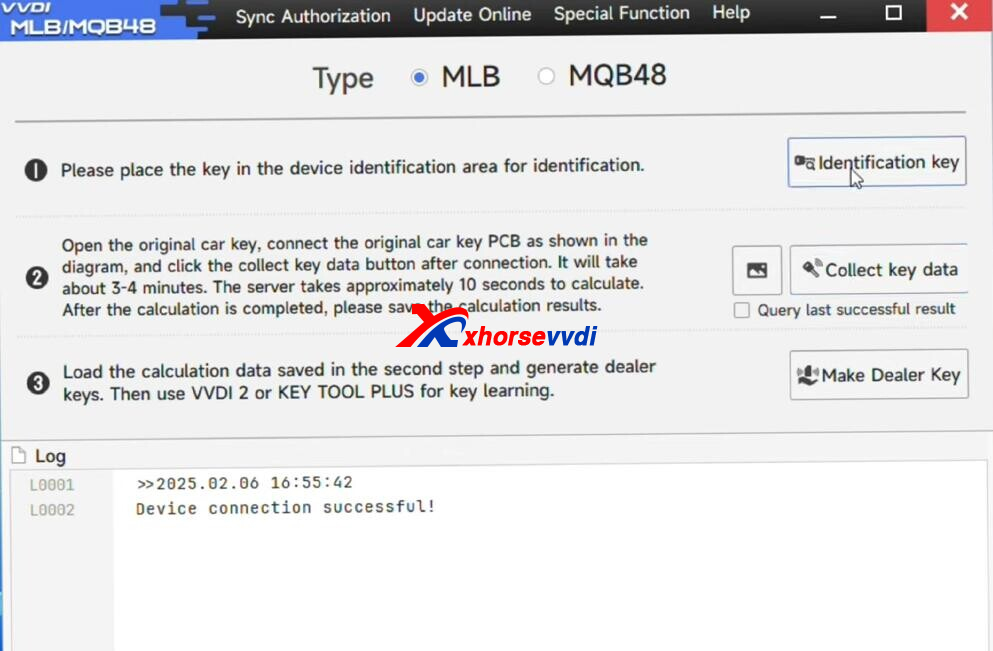

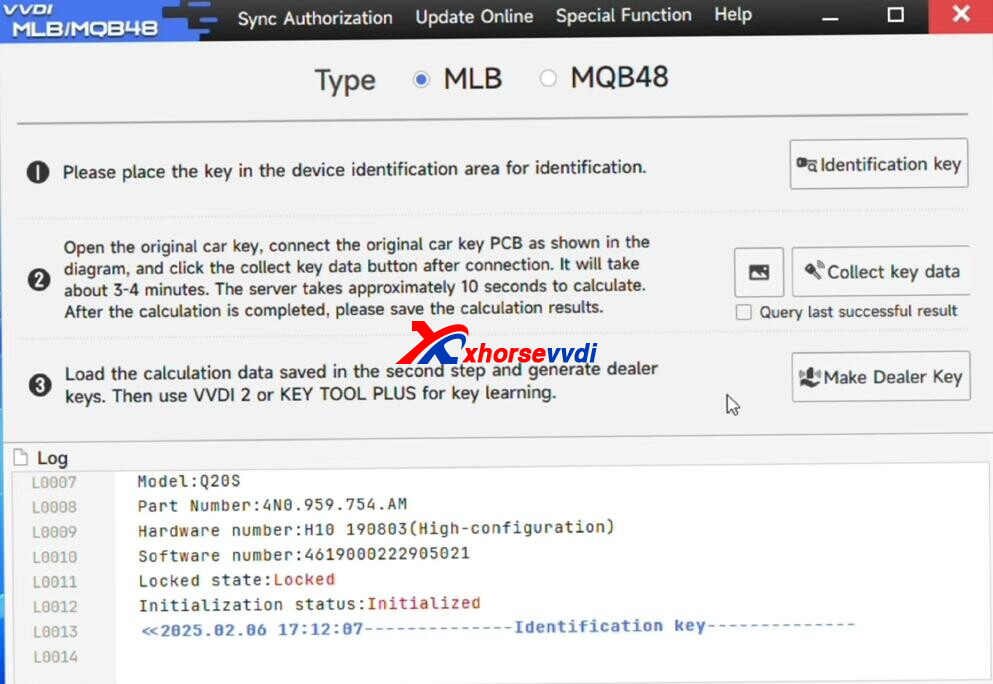

Identify original key.

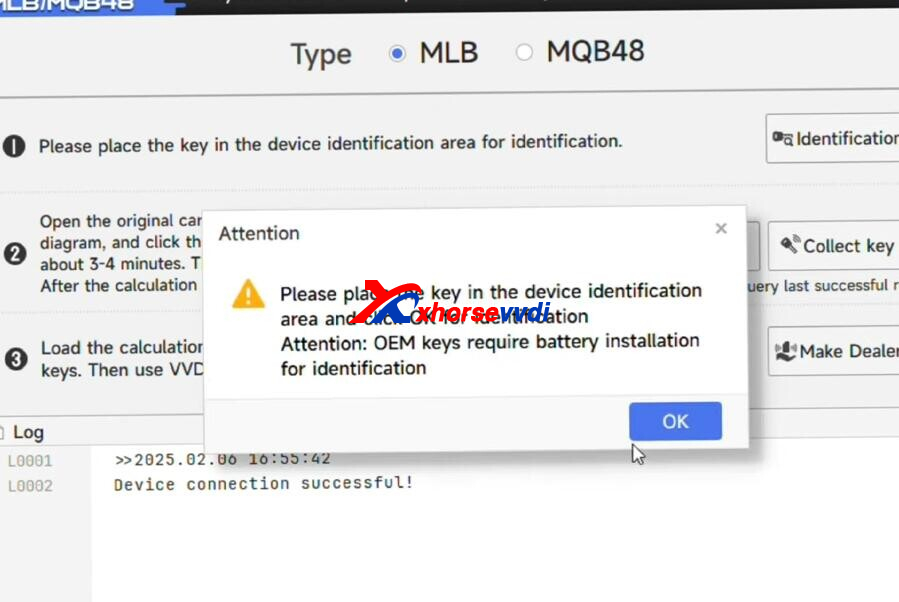

Please place the key in the device identification area and click OK for identification.
Attention: OEM keys require battery installation for identification.

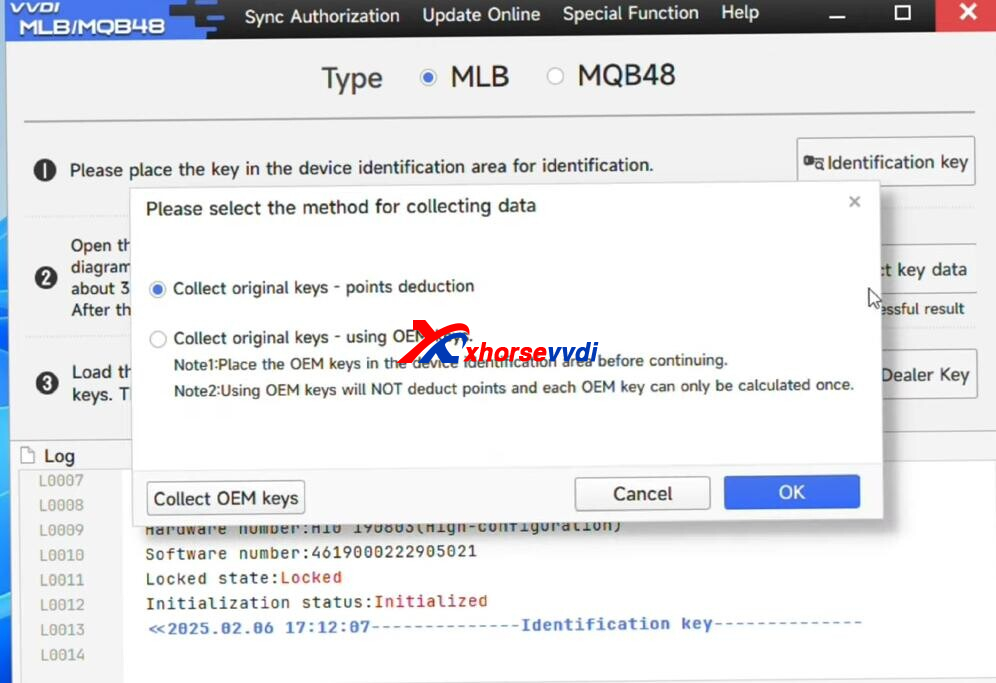

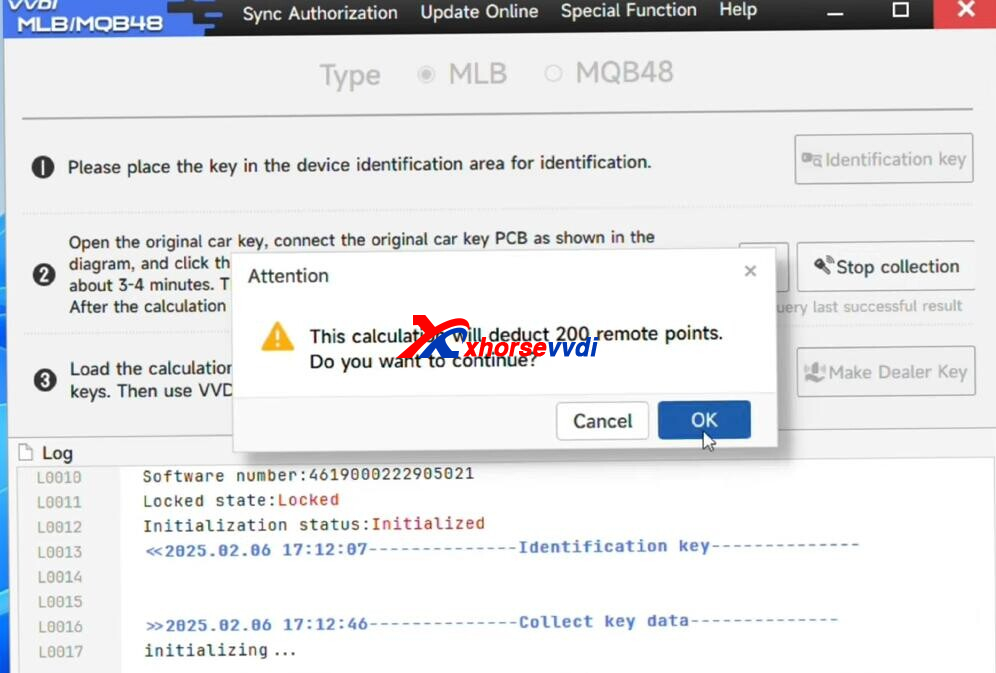

Collect key data. This process will cost 200 points.

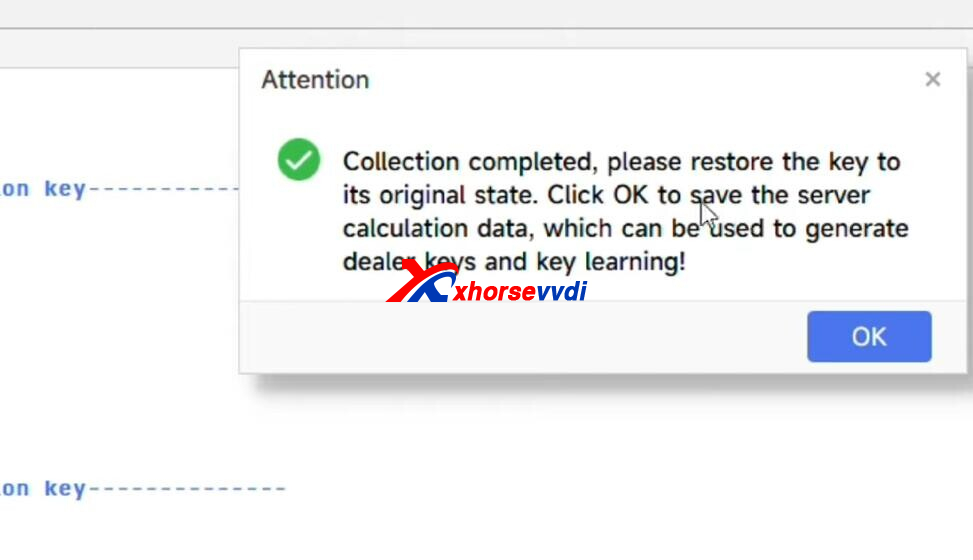

Collection completed, please restore the key to its original state. Click OK to save the server calculation data, which can be used to generate dealer keys and key learning!

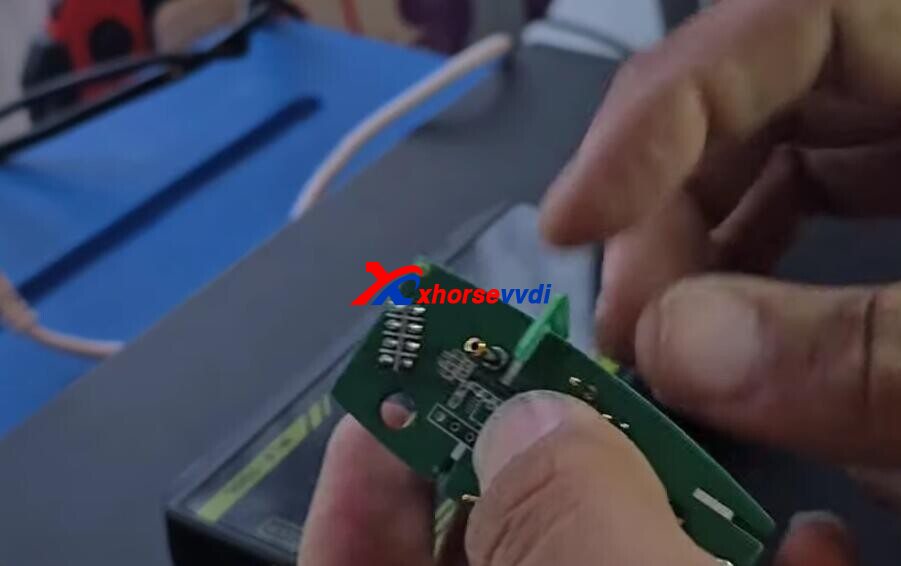

Remove the adapter, and put back the capacitors.
Put the key pcb to key shell.
Finish.
