Xhorse VVDI Key Tool Max Adding a New Key for 2014-2019 Honda Civic via OBD

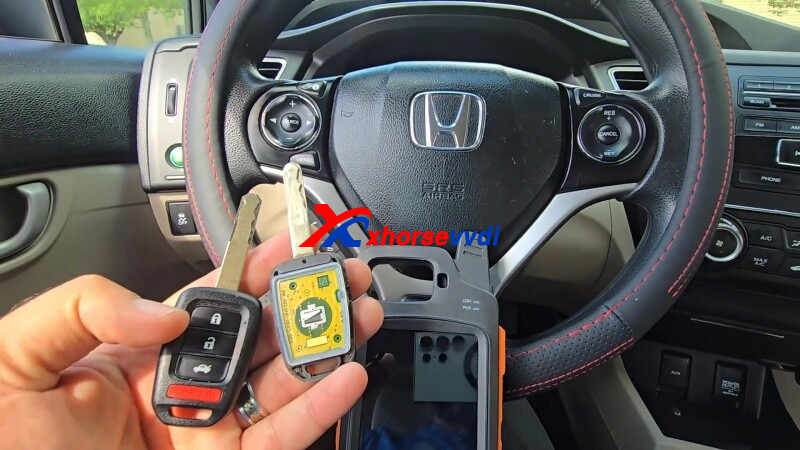

If you’ve lost a key or just want to add a spare one for your Honda Civic (2014–2019), the Xhorse VVDI Key Tool Max Pro/Key Tool Max makes the process quick and simple via OBD. Below is a step-by-step guide on how to complete the procedure successfully.

how-to-add-2014-2019-honda-civic-key-with-xhorse-key-tool-max-1

What You’ll Need?

Step-by-Step Guide

1. Connect the Device

  • Plug the Key Tool Max Pro into the vehicle’s OBD port.
  • Turn the ignition ON with the original key.

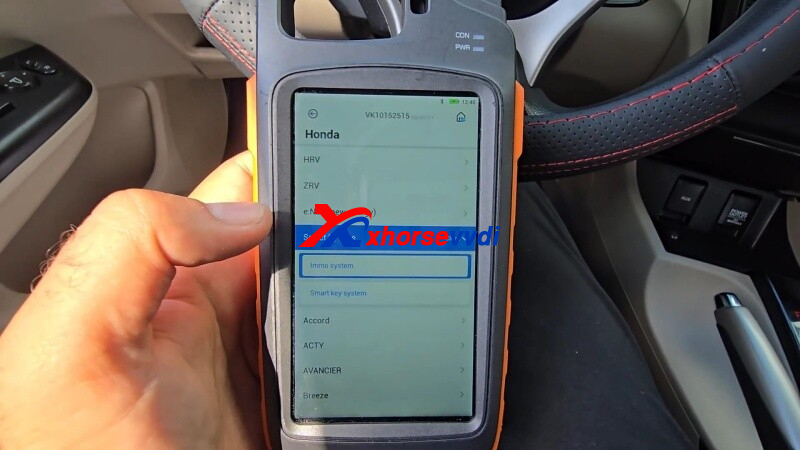

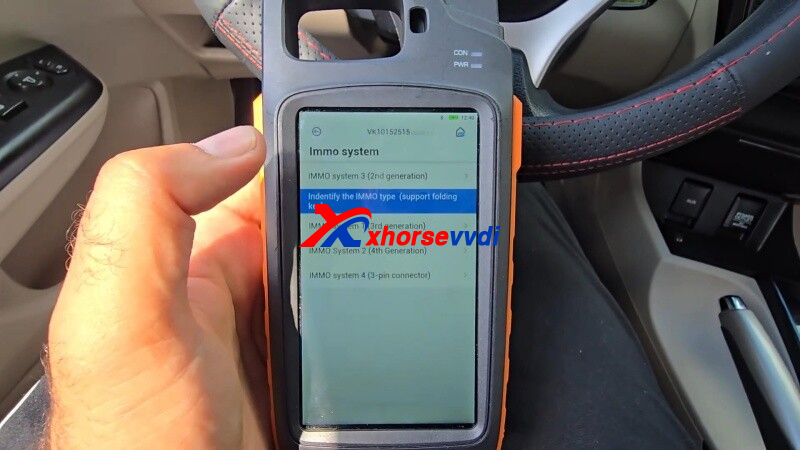

  • On the device menu, navigate to: Immo Programming → Honda → Select by Type → Immo System → Identify the IMMO Type (support folding key).
  • Confirm with OK.

2. Identification Process

  • Turn the ignition OFF.
  • Switch the ignition ON again.
  • The system will identify the IMMO type.

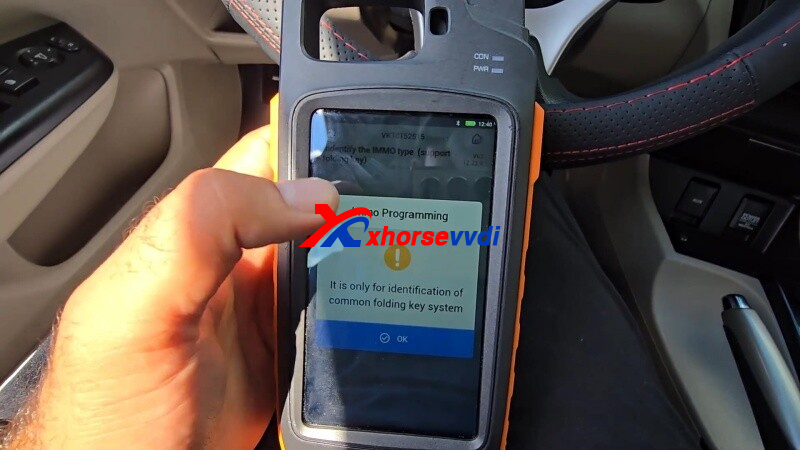

  • Note: This step is only for confirming the type of folding key system.

how-to-add-2014-2019-honda-civic-key-with-xhorse-key-tool-max-2

how-to-add-2014-2019-honda-civic-key-with-xhorse-key-tool-max-3

how-to-add-2014-2019-honda-civic-key-with-xhorse-key-tool-max-4

3. Start Key Programming

  • On the Key Tool Max Pro, press Add Key.

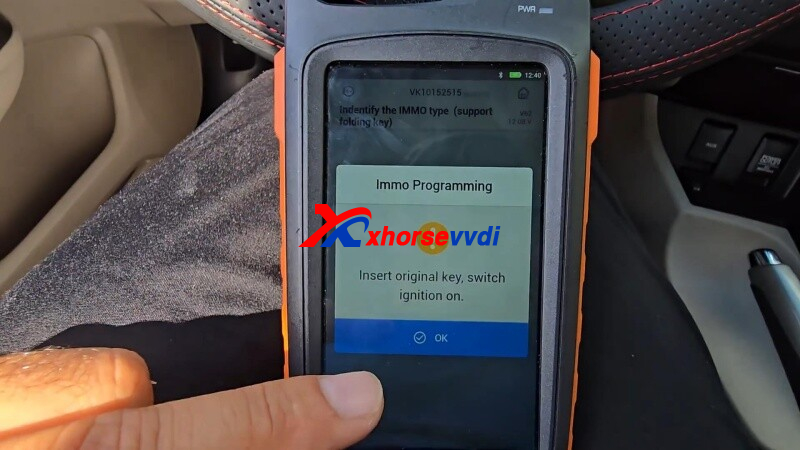

  • Insert the original key and switch ignition ON.
  • Turn ignition OFF, then ON again.
    If no response within 10 seconds, repeat the OFF/ON cycle until the system responds.

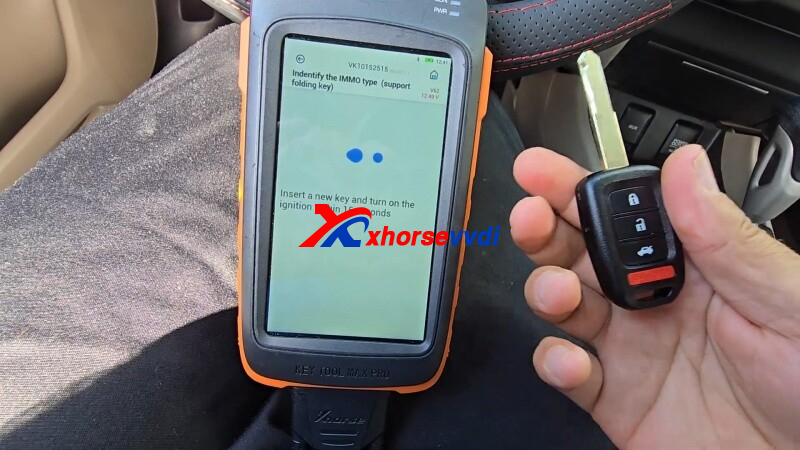

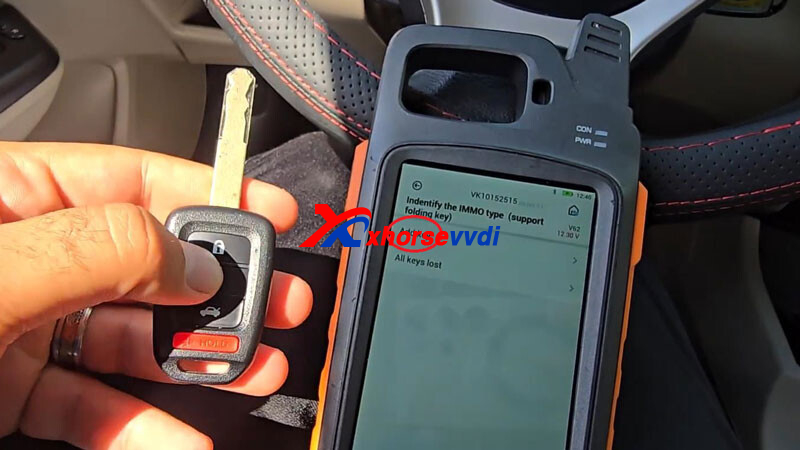

4. Program the New Key

  • Turn ignition OFF.
  • Insert the new key and turn ignition ON within 15 seconds.
  • Turn ignition OFF, then ON again.
  • Repeat the OFF/ON sequence until the system confirms programming.

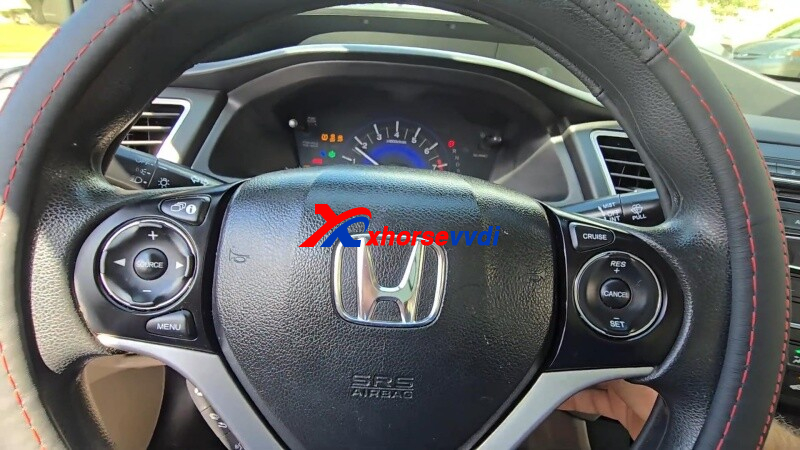

5. Final Check

  • Confirm that the IMMO indicator light is off.
  • Switch ignition ON and test the new key.
  • Try starting the car.
  • If the engine starts and remote functions work, the new key has been successfully programmed.

how-to-add-2014-2019-honda-civic-key-with-xhorse-key-tool-max-5

how-to-add-2014-2019-honda-civic-key-with-xhorse-key-tool-max-6

how-to-add-2014-2019-honda-civic-key-with-xhorse-key-tool-max-7

how-to-add-2014-2019-honda-civic-key-with-xhorse-key-tool-max-8

Adding a new key to a 2014–2019 Honda Civic with VVDI Key Tool Max/Max Pro is straightforward. With just a few OFF/ON ignition cycles and following the on-screen steps, you’ll have your new key programmed in minutes—no dealer visit required.
