Xhorse Multi Prog VW 5C 5D Key Connection Diagram

If you are working with Volkswagen or Audi 5C/5D keys, the Multi Prog tool allows you to read immobilizer data and write dealer (original) keys quickly and reliably. With MultiProg, key programming becomes safer and more efficient, making it an essential tool for automotive locksmiths and dealerships.

How to Test with MultiProg

You can access the official testing channel via:
Help → Test 180

If the key cannot be read, we recommend connecting a 100Ω resistor in series on the CLK line.

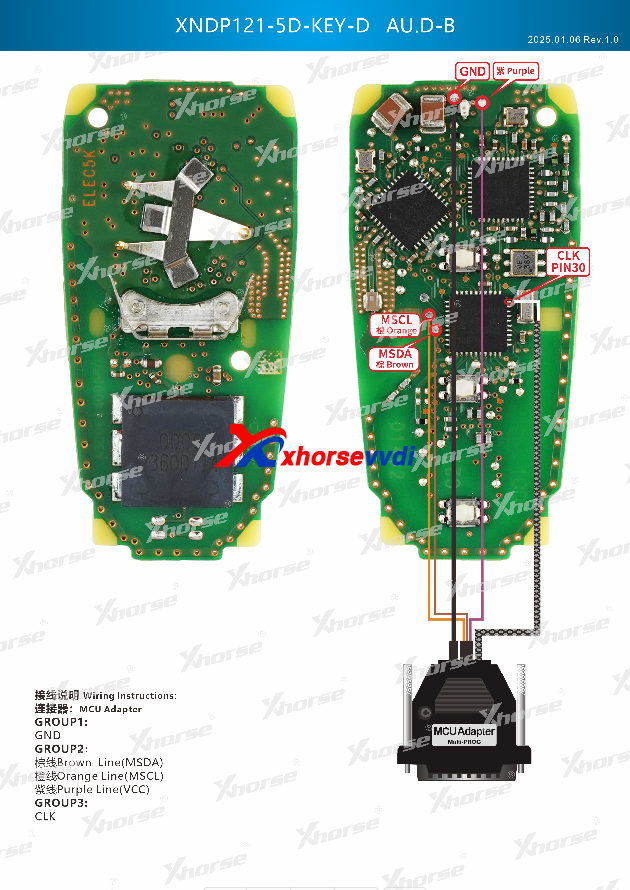

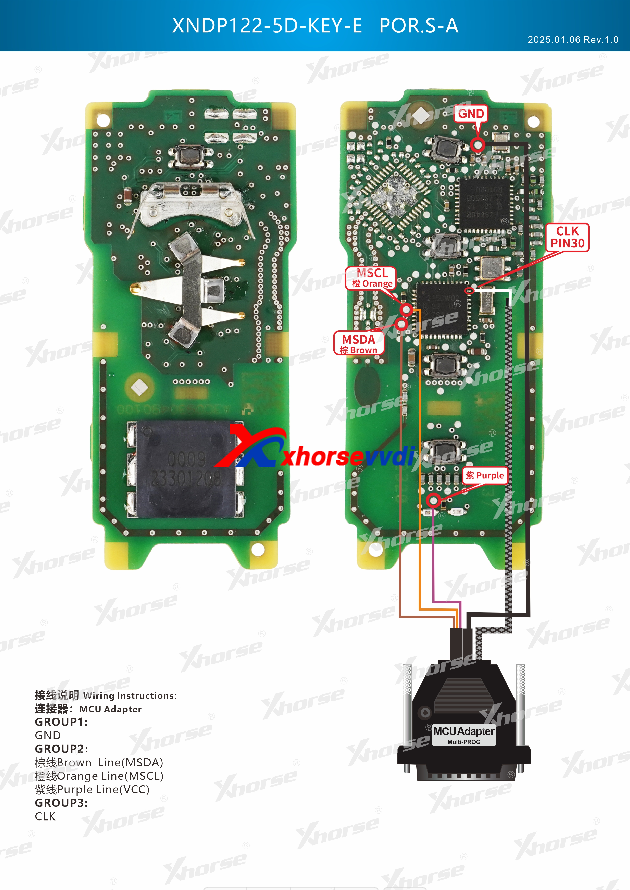

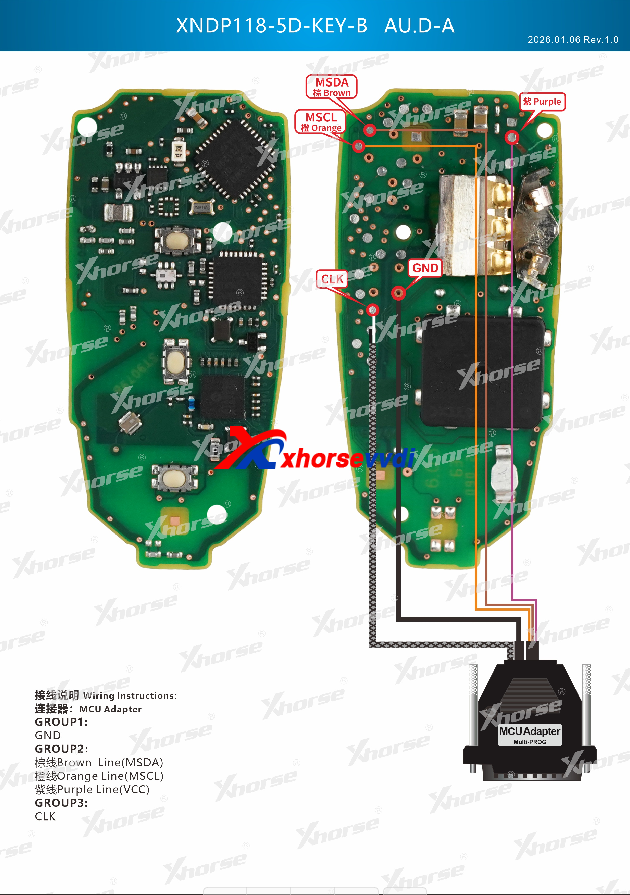

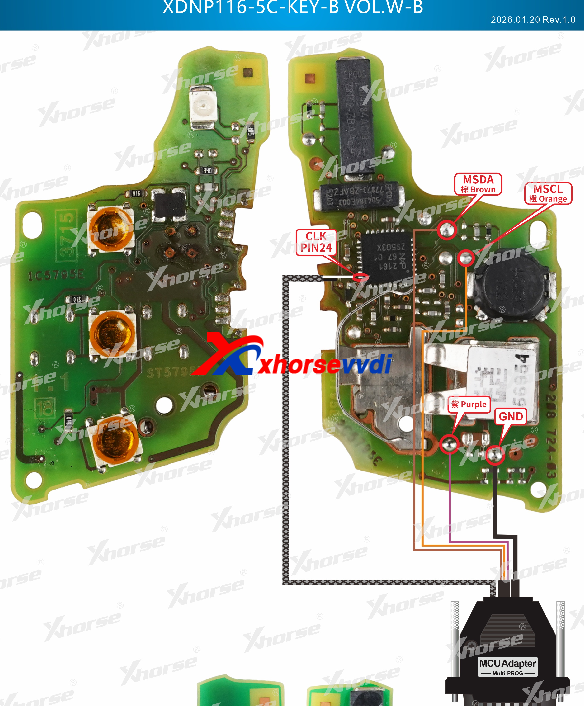

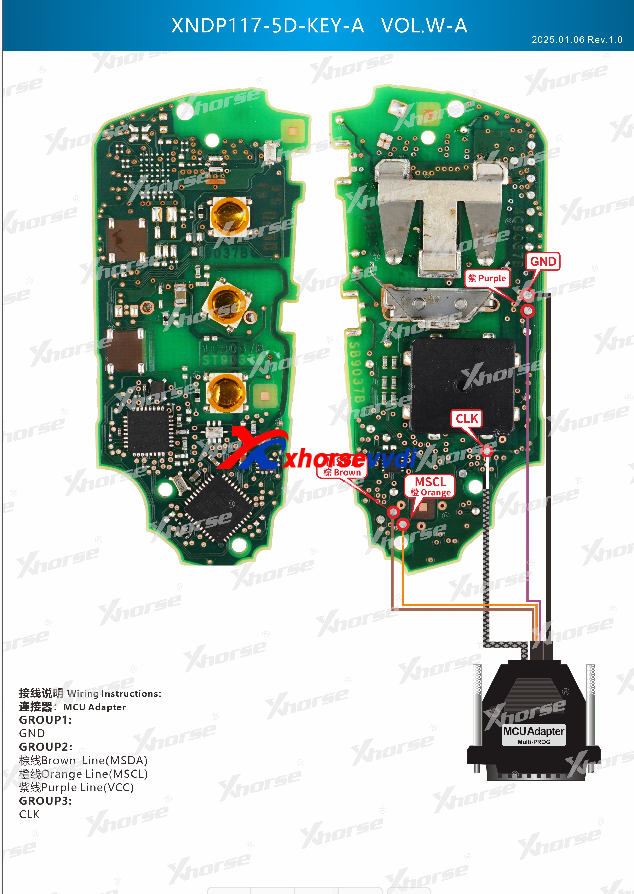

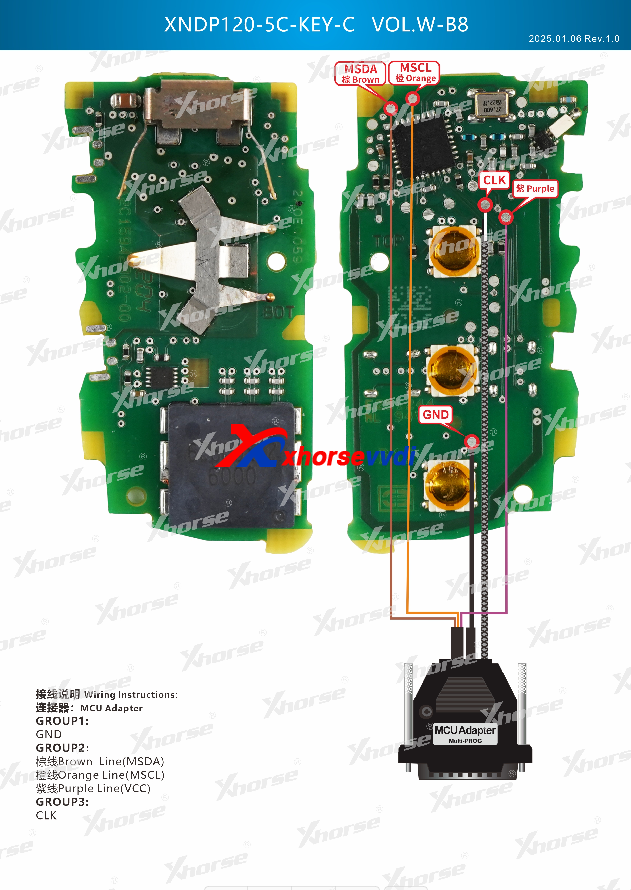

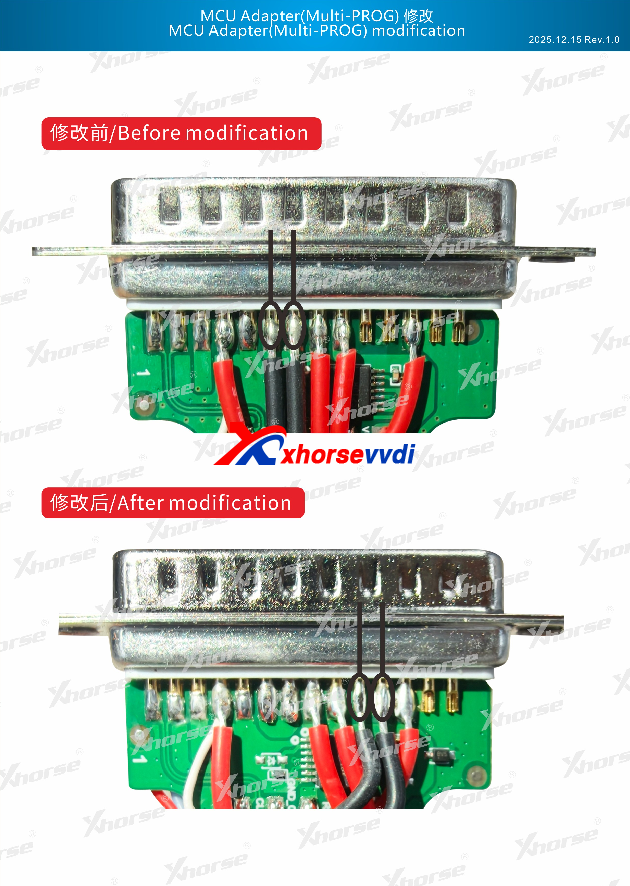

For your convenience, a connection diagram is also provided to guide the setup and ensure correct wiring.

Xhorse Multi Prog VW 5C 5D Key Connection Diagram
