Losing all keys for a Mercedes-Benz can be a stressful situation, especially with older E-Class models such as the 2005 E500 W211. Fortunately, the Xhorse VVDI Key Tool Plus Pad offers a reliable, solder-free solution for programming new keys directly on the bench. With the proper adapters and equipment, you can read the EIS, prepare a key file, and program a new key without opening the vehicle.
Required Tools & Equipment
- VVDI Key Tool Plus
- Solderless EZS Adapter (ST12) for W211 EIS
- Multi-Function Adapter (to connect with Key Tool Plus)
- DB15 Cable
- T15 Torx Screwdriver
- New VVDI BE Key
- (Optional) Bench test setup for final verification
Step-by-Step Guide
1. Prepare the EIS (Electronic Ignition Switch)

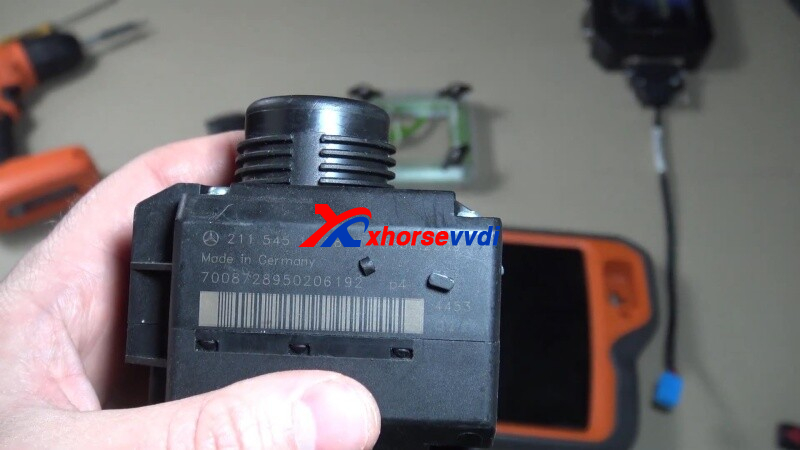

- Use a T15 screwdriver to remove the screws on the EIS housing.
- Open the unit carefully to expose the contact pads.
2. Connect the Adapters

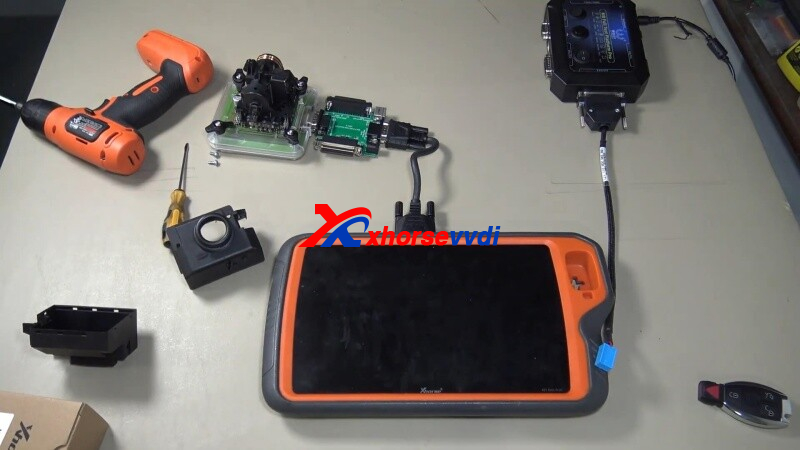

- Insert the EIS securely into the solderless ST12 adapter, ensuring proper pin contact.
- Connect the DB15 cable between the Key Tool Plus and the adapter.
- Use the multi-function adapter to bridge the connection to the Key Tool Plus tablet.
3. Read EIS Data

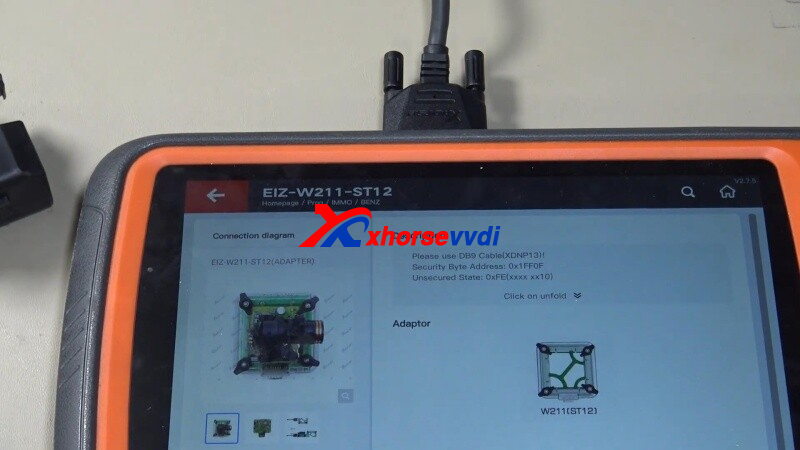

- On Key Tool Plus, navigate to: Prog > IMMO > Benz > EIZ-W211-ST12
- Select Read EEPROM.

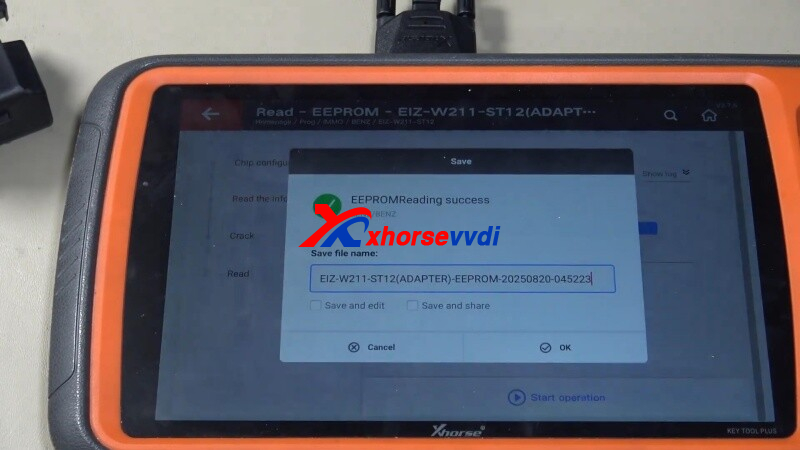

- Save the file with a recognizable name when prompted.

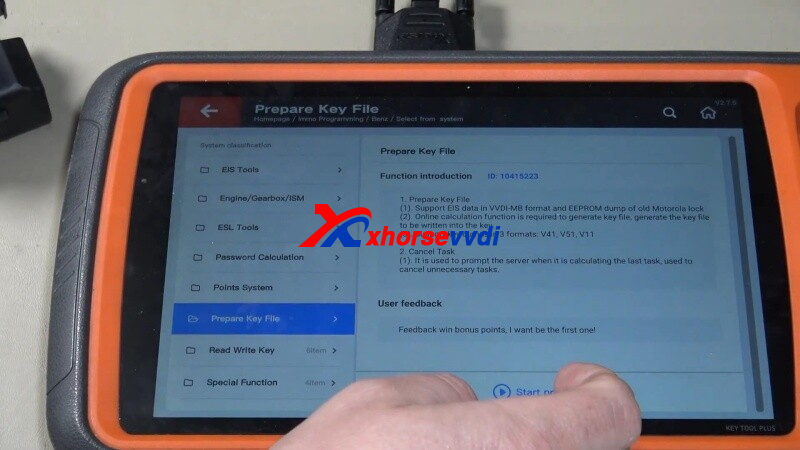

4. Prepare the Key File
- Navigate to: IMMO > Benz > Select from system > Prepare Key File
- Load the EEPROM file saved earlier.

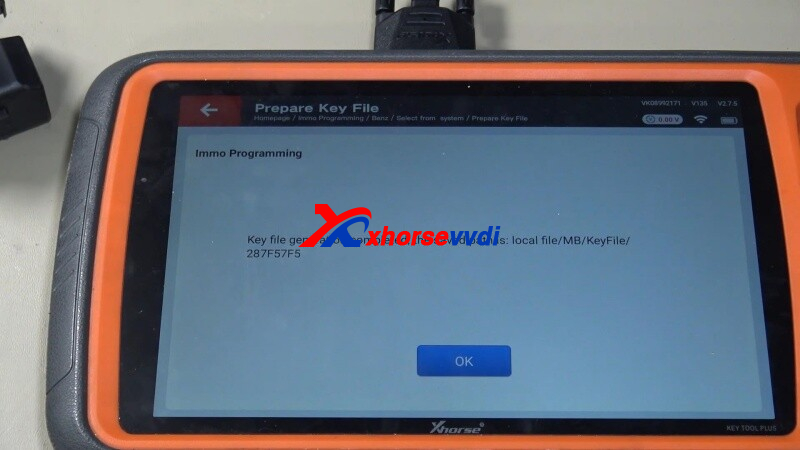

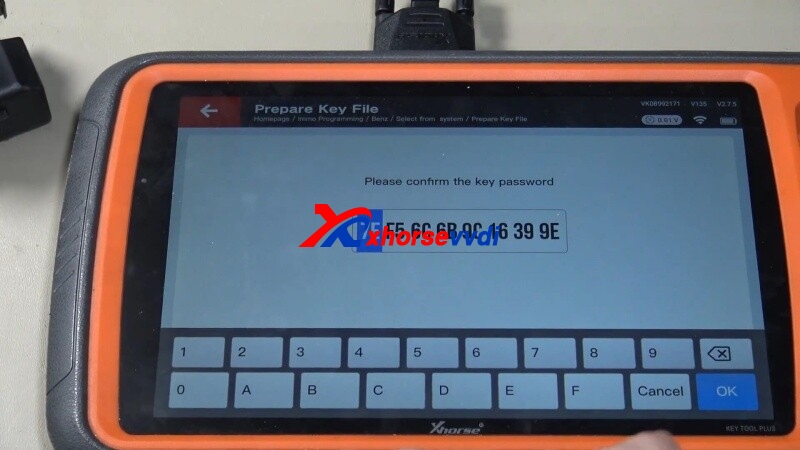

- The software will extract the security password and generate a new key file.
- Save the prepared key file for programming.

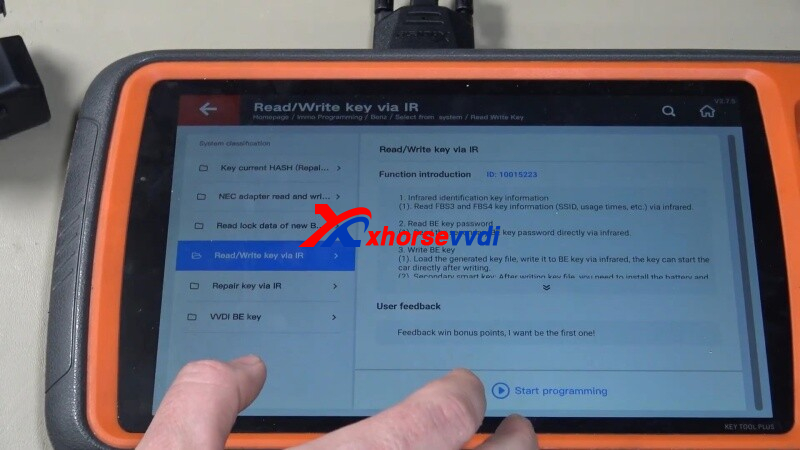

5. Program the New Key

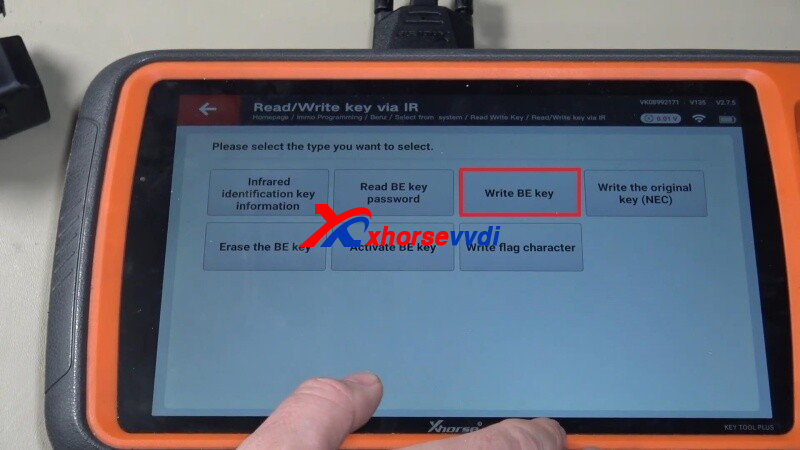

- Go to:Read/Write Key > Read/Write Key via IR > Write BE Key

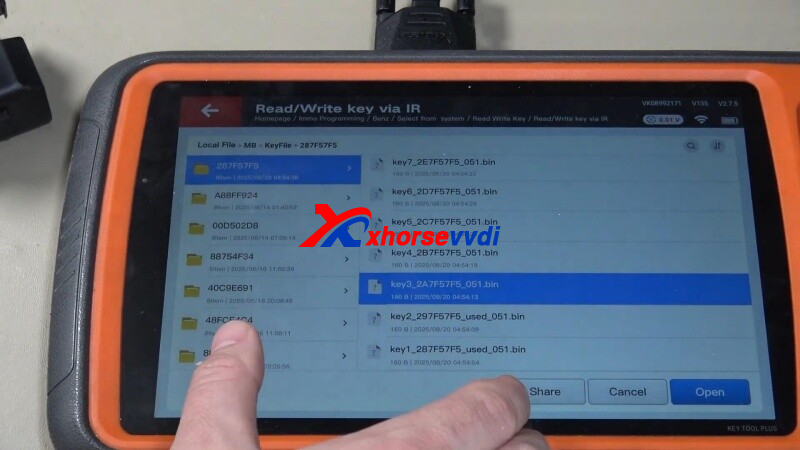

- Load the prepared key file.
- Insert the new VVDI BE Key into the Key Tool Plus.
- Execute Write Key. Wait for the confirmation message of successful programming.

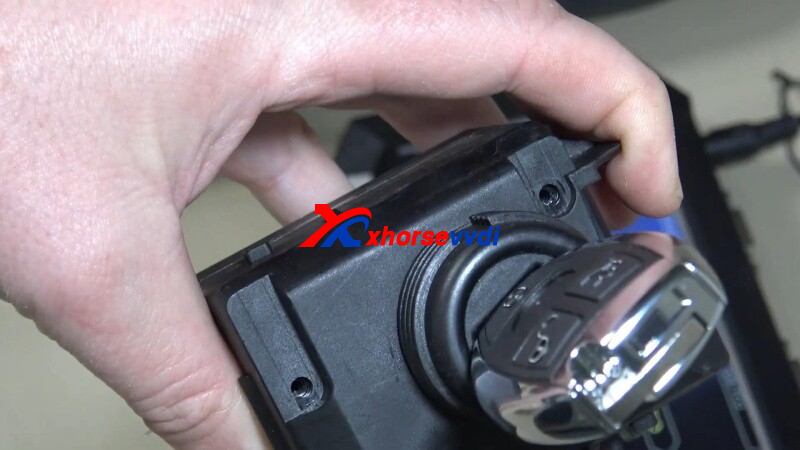

6. Test the Key (Bench Verification Recommended)
- Reassemble the EIS housing.
- Connect the EIS to a bench test platform with power.
- Insert the programmed key: If the red LED stays on, remove and reinsert the key.
- A successful operation is confirmed when the red LED turns off and you hear the internal lock click.
The Key Tool Plus, combined with the solderless ST12 adapter, provides a straightforward method to perform all keys lost (AKL) programming for the Mercedes-Benz W211 EIS. This no-soldering solution saves time, reduces risk, and ensures a fast turnaround for locksmiths and technicians. Once the process is complete, the EIS can be reinstalled, and the vehicle is ready to start with the new key.
