VAG Airbag 3D0 909 601 E Wiring Pinout for Xhorse Multi-Prog

Posted on by Sales xhorsevvdi.com

Here shares Xhorse Multi-Prog Airbag Pinout for Bentley Continental GT / Porsche Cayenne / VW Touareg with CR16HCS9 MCU.

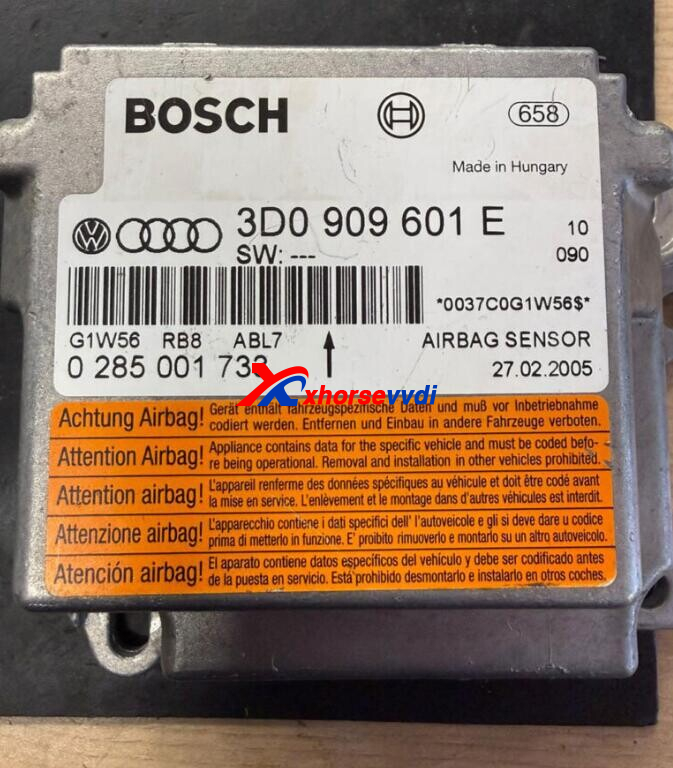

  • SRS Module Part Numbers:

Bosch 0 285 001 733 / 3D0 909 601 E

  • MCU Type:

CR16HCS9

multi-prog-vag-airbag-3d0-909-601-e-pinout-1

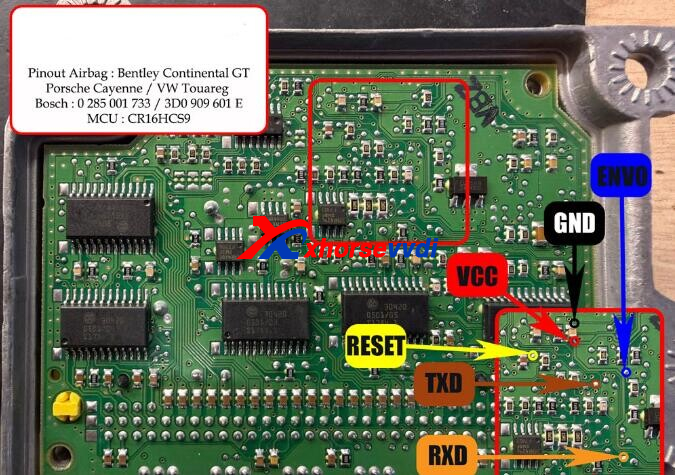

multi-prog-vag-airbag-3d0-909-601-e-pinout-2

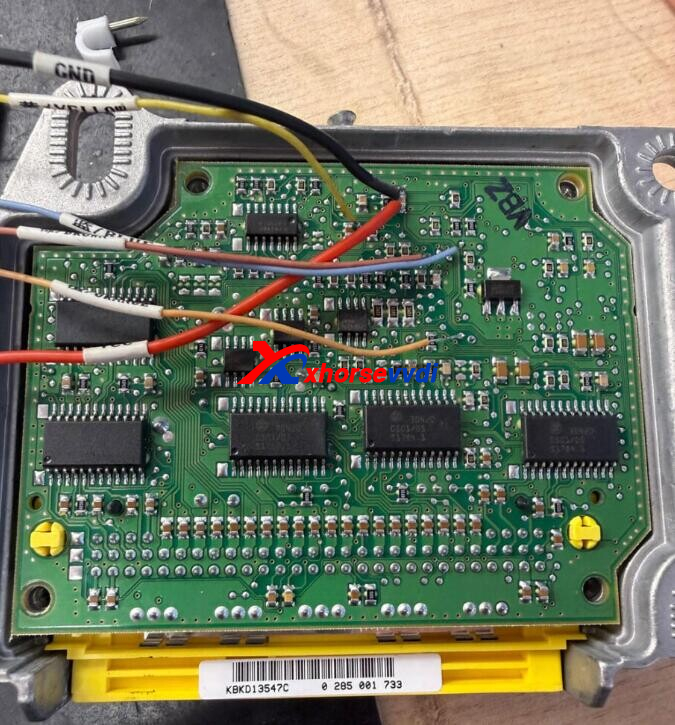

multi-prog-vag-airbag-3d0-909-601-e-pinout-3

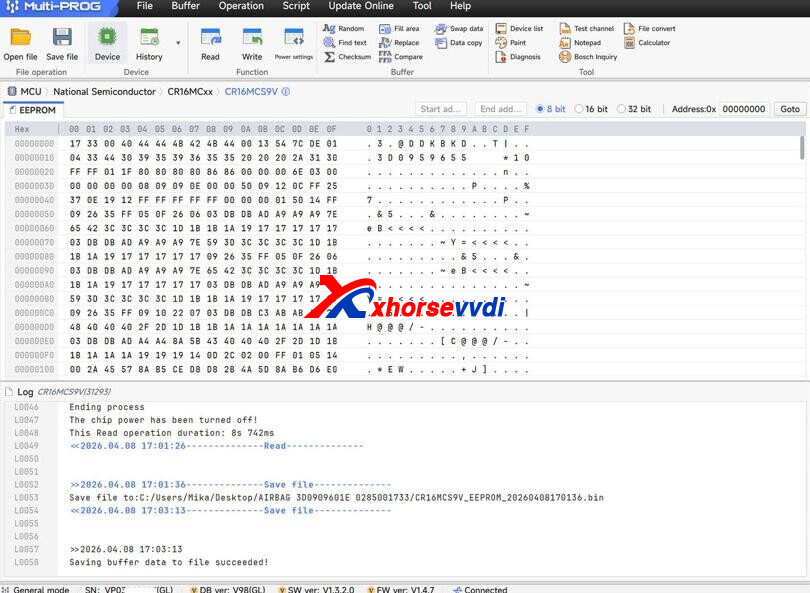

Navigate to: MCU → National Semiconductor → CR16MCxx → CR16MCS9V

multi-prog-vag-airbag-3d0-909-601-e-pinout-4

Credits to @ Mr. Ballongue
