Xhorse VVDI PROG EEPROM Clip Using Tips

Question:

For the VVDI PROG EEPROM Read Clip which colour wire is for pin number 1 so I know correct location on the eeprom (chip) when I use VVDI Programmer.

Also what are the 2 free hanging wires used for as you can see them in the photo.

Here is the Answer:

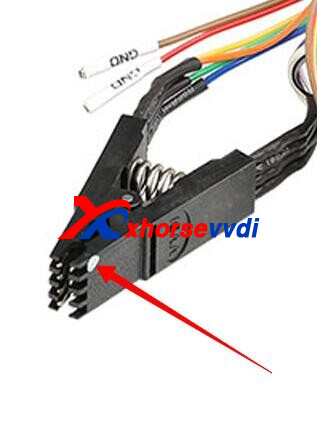

PIN1>>Black wire, also a white dot is marked on PIN1.

2 free hanging GND wires are connected to the probe for some chips

Done! Hope this helps!
